    MELLOR FB1344 1rpm GEAR MOTOR WITH ENCODER

    MELLOR FB1344 1rpm GEAR MOTOR WITH ENCODER

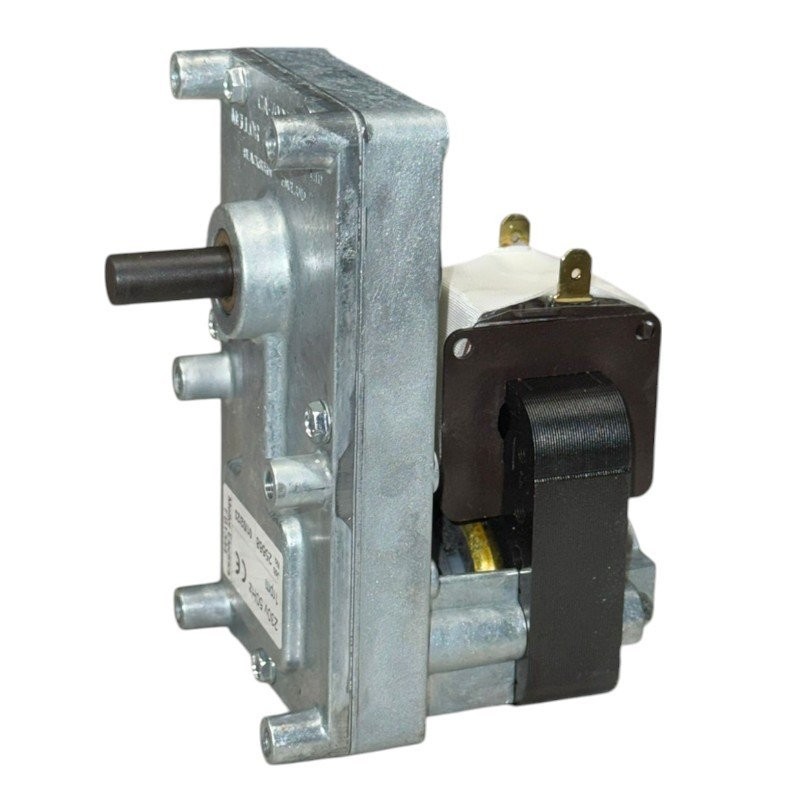

    DescriptionMellor FB1344 Gearmotor

    Speed: 1 rpm.

    Reed valve: 19 mm.

    Shaft diameter: 9.5 mm.

    Flattening: single.

    Direction of rotation: clockwise.

    Rated torque: 20 Nm.

    Model with encoder
    SKU14702026
    CharacteristicsSuitable for use in applications where low speed and high torque are required, the Mellor FB1344 gearmotor is specifically designed to be used as a rotor to power pellet stoves.
    T3 Series
    nominal torque 20 Nm
    absorption 13 Watts
    speed 1 rpm
    clockwise rotation
    shaft diameter 9
    5 mm
    19 mm reed valve pack
    power supply 220 V AC - 50
    60Hz.
