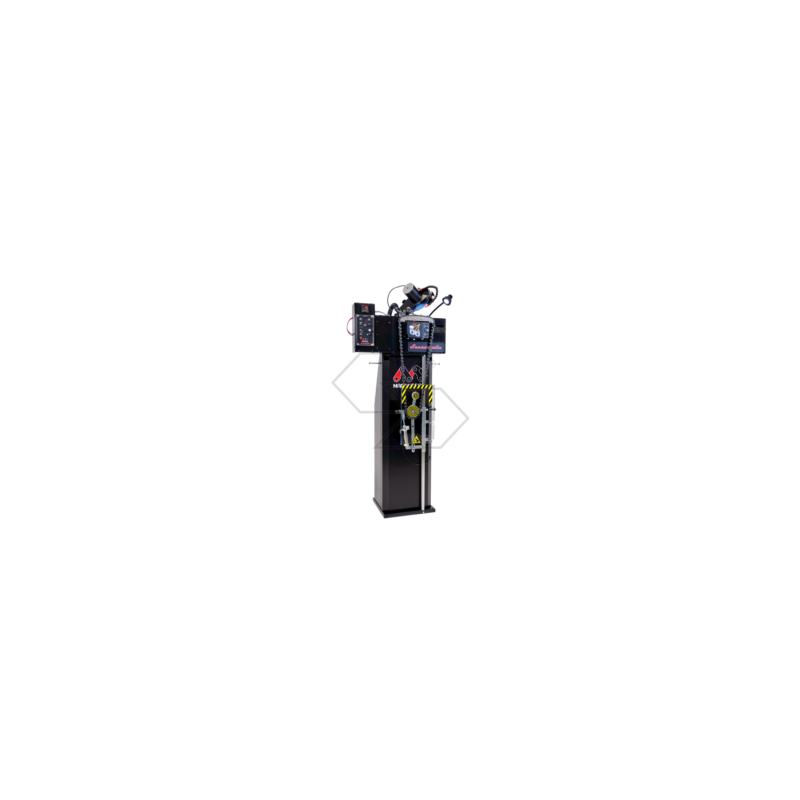

SENSOMATIC M315830 automatic sharpener
€12,360.63
€13,291.00
Save 7%Tax Included
Return policy:14
| Name | SENSOMATIC automatic sharpener |
|---|---|
| MPN | M315830 |
| EAN | 8023668274424 |
| Information | Used in: MARKUSSON sharpening and grinding machines |
| Notes | The Sensomatic is a triple-function sharpener as it works the tooth in three different points: the cutting edge, the throat and the depth gauge. It is also equipped with a sensor in the chain advancement system that detects the sequence of right-left cutting edges and any gaps between them, automatically adjusting the steps. The sharpener allows you to manually set all the various parameters such as the depth, the quantity of material to be removed and the sharpening angle (0° - 35°). The lowering of the limiter can be operated at low or high speed. The Sensomatic is supplied complete with a system for extracting sharpening residue, an air cooling system, LED lighting and a pneumatic chain tensioner including a sliding bar, through which chains of any size can be positioned. Motor: 12 V, 12 A Power: 144 W Safety: via resettable fuse Power supply: 12 V DC (or 230 V AC via supplied transformer) Operating voltage: min. 12 V – max. 15 V Grinding wheel speed: 3250 min-1 Peripheral speed of the grinding wheel: 25 m/s Sharpens chains with pitches of: 1/4”, .325”, 3/8” and .404” with thickness from 1.3 to 2.0 mm Sound level: 92 Db(A) Dimensions (without stand): 480x330x520 mm Weight: 49 kg |
8023668274424
M315830
Data sheet
