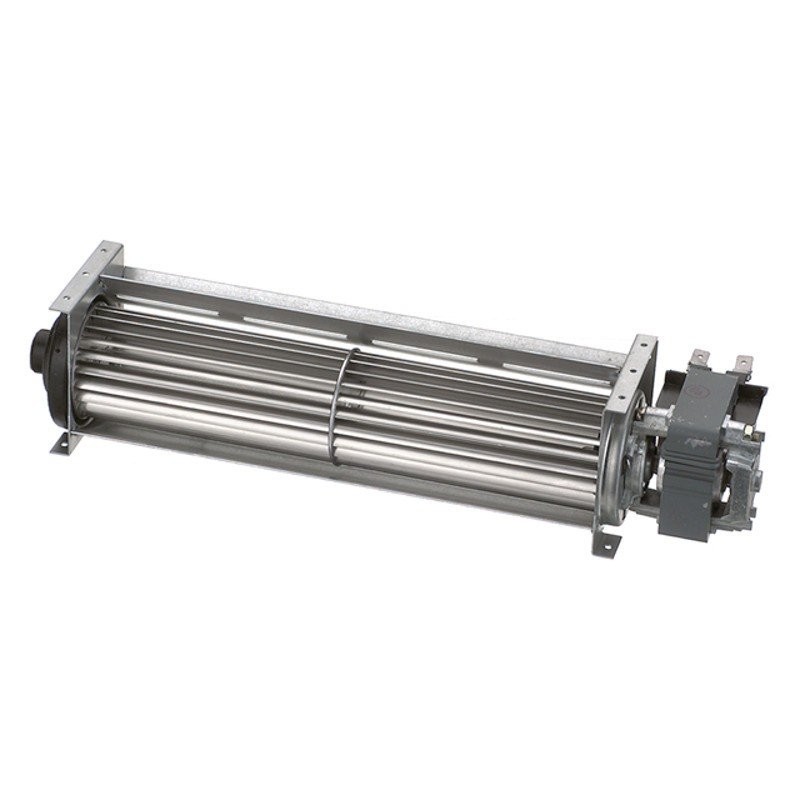

EBM TANGENTIAL QL4/0020A32-2118LH-460
€148.00
Tax Included
Return policy:14
| Description | EBM QL4/0020A32-2118LH-460 Tangential Fan Fan diameter: 40 mm Fan length: 200 mm Total length: 282 mm Nozzle dimensions: 200x40 mm Flow rate: 106 m³/h Reed valve: 18 mm Power: 22 Watts Specific for high temperatures. |
|---|---|
| SKU | 14706078 |
| Characteristics | Tangential fan for EBM QL4 pellet stove 0020A32-2118LH-460 cod. 554431170 specific for high temperatures is a silent product compact and extremely reliable. The fan impeller with a diameter of 40mm It produces a vortex motion that allows for the production of a stable and well-distributed air flow with a flow rate of 106 m³ h. Furthermore, the small size total length 282mm Air outlet nozzle dimensions: 200x40mm allow the tangential fan to be more easily adaptable to different applications. Mount on stoves NORDICA EXTRAFLAME Cod. 0020027 - 20027 mod. INSERT 50 vertical ventilated - insert 60 ventilated - insert 80 ventilated |
