- New

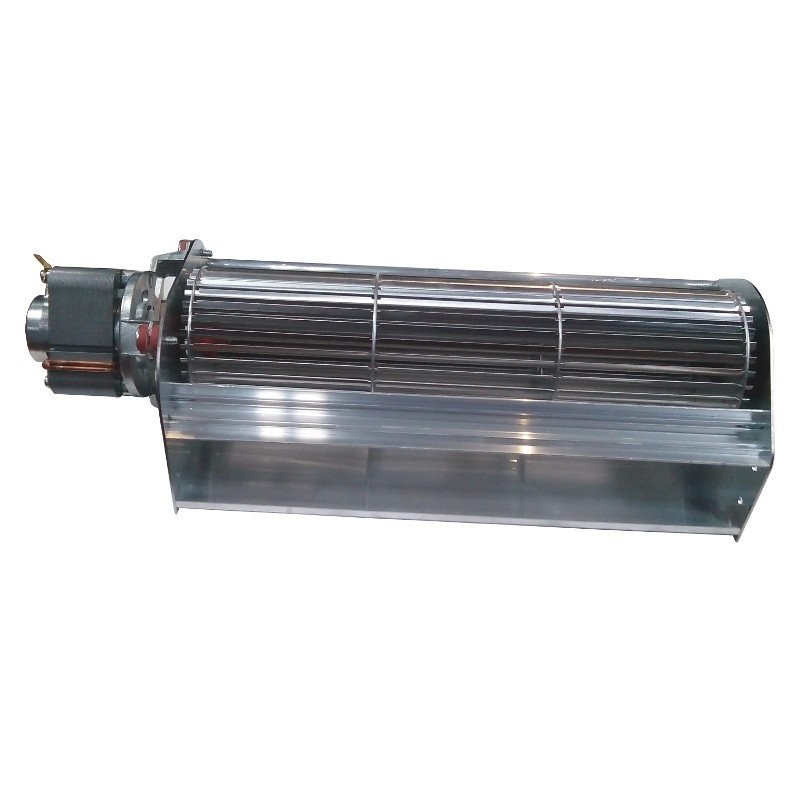

TANGENTIAL FAN TGO80/1 300/35 149504
€174.00
Tax Included
Return policy:14
| Description | FERGAS 149504 dual-speed tangential fan Fan diameter: 80 mm Fan length: 300 mm Total length: 406 mm Nozzle dimensions: 310x44 mm Flow rate: 175/195 m³/h Reed valve pack: 35 mm Power: 33/39 W Specific for high temperatures. |
|---|---|
| SKU | 14706054 |
| Characteristics | Tangential fan for TGO 80 pellet stove 1-300 35 FERGAS 149504 double speed specific for high temperatures is a silent product compact and extremely reliable. Equivalent to the following tangential fans EMMEVI - FERGAS 149503 - 149502 The fan impeller with a diameter of 80mm It produces a vortex motion that allows for the production of a stable and well-distributed air flow at the outlet with a flow rate of 175-195 m³ h. Furthermore, the small size total length 406 mm Air outlet nozzle dimensions: 310x44mm allow the tangential fan to be more easily adaptable to different applications. Draws 39 Watts at full power. Mount on stoves: FIREPLACES MONTEGRAPPA ref. 1184048100 Mod. Pellet Plus 10000 - Pellet Plus 10000 Power - Pellet Plus 11000 - Pellet Plus 11000 Power |
LR14706054
Data sheet
Specific References
TANGENTIAL FAN TGO80/1 300/35 149504
€174.00
Tax Included
Return policy:14
