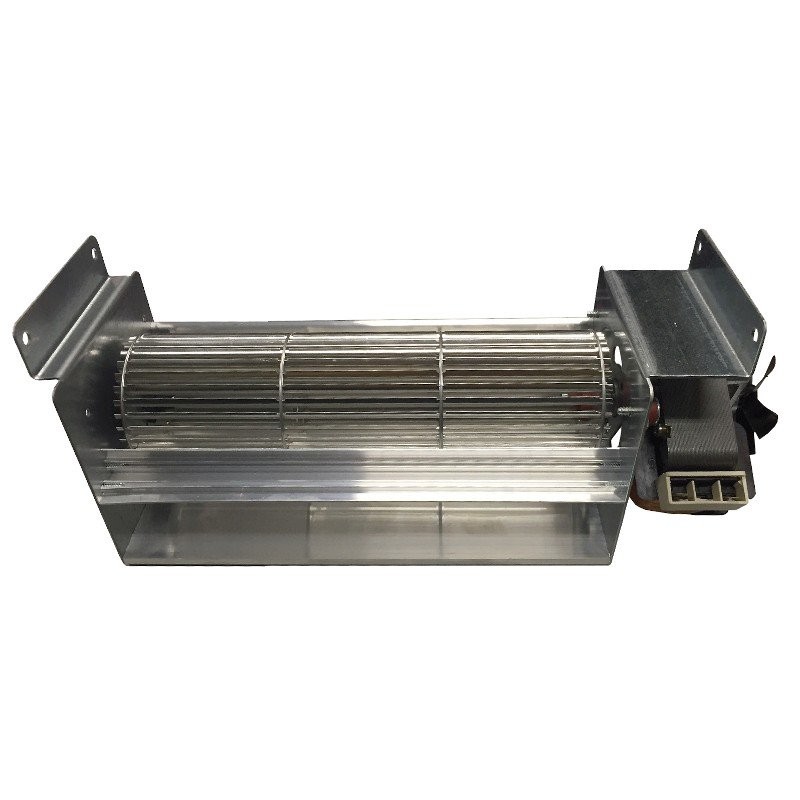

TANGENTIAL FAN TGA80/1 270/35 158201
€187.00
Tax Included
Return policy:14
| Description | Tangential fan for pellet stove. Fan diameter: 80 mm Fan length: 270 mm Total length: 383 mm Nozzle dimensions: 283x44 mm Flow rate: 337 m³/h Reed valve pack: 35 mm Power: 110 W Specific for high temperatures. |
|---|---|
| SKU | 14706048 |
| Characteristics | Tangential fan for TGA 80 pellet stove 1-270 35 EMMEVI - FERGAS 158201 specific for high temperatures silent compact in size and extremely reliable. The fan impeller with a diameter of 80mm through a vortex motion it produces a flow of air that is stable and well distributed at the outlet. Furthermore the dimensions total length 383mm Air outlet nozzle dimensions: 283x44mm allow the tangential fan to be more easily adaptable to different applications. With a power draw of 110 watts at full power. Mount on stoves EDILKAMIN ref. 292240 Iris plus - Lilia plus (up to serial number 3748730) - Iris with timer (starting from serial number 3702099 up to serial number 3738550) the 2004 and 2005 models use code 14706012 - Junior - Trend plus (replacing ref. 643320) |
LR14706048
Data sheet
Specific References
TANGENTIAL FAN TGA80/1 270/35 158201
