    TANGENTIAL FAN TGO80/1 330/35 153616

    TANGENTIAL FAN TGO80/1 330/35 153616

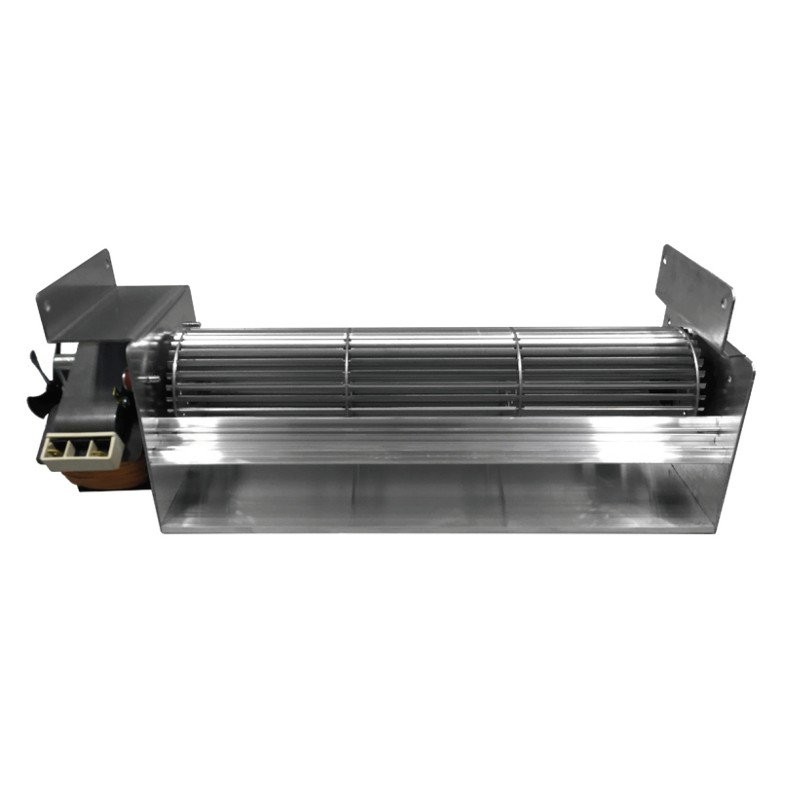

    DescriptionTangential fan for pellet stove.

    Fan diameter: 80 mm

    Fan length: 330 mm

    Total length: 436 mm

    Nozzle dimensions: 344x44 mm

    Flow rate: 410 m³/h

    Reed valve pack: 35 mm

    Power: 78 W

    Specific for high temperatures.
    SKU14706038
    CharacteristicsTangential fan for TGO 80 pellet stove
    1-330
    35 EMMEVI - FERGAS 153612 - 153616
    specific for high temperatures, it is a silent product
    compact and extremely reliable.
    The fan impeller with a diameter of 80mm
    It produces a vortex motion that allows for the production of a stable and well-distributed air flow with a flow rate of 410 m³
    h.
    Furthermore, the small size
    total length 436mm
    Air outlet nozzle dimensions: 344x44mm
    allow the tangential fan to be more easily adaptable to different applications.
    It draws 78 watts at full power.
    Mount on stoves
    EDILKAMIN ref. 284880 Mod. Mariù (from serial number 5208660 to serial number 5274400) - Rose (from serial number 3626655 to serial number 3693726)
    Newgardenstore
    LR14706038
