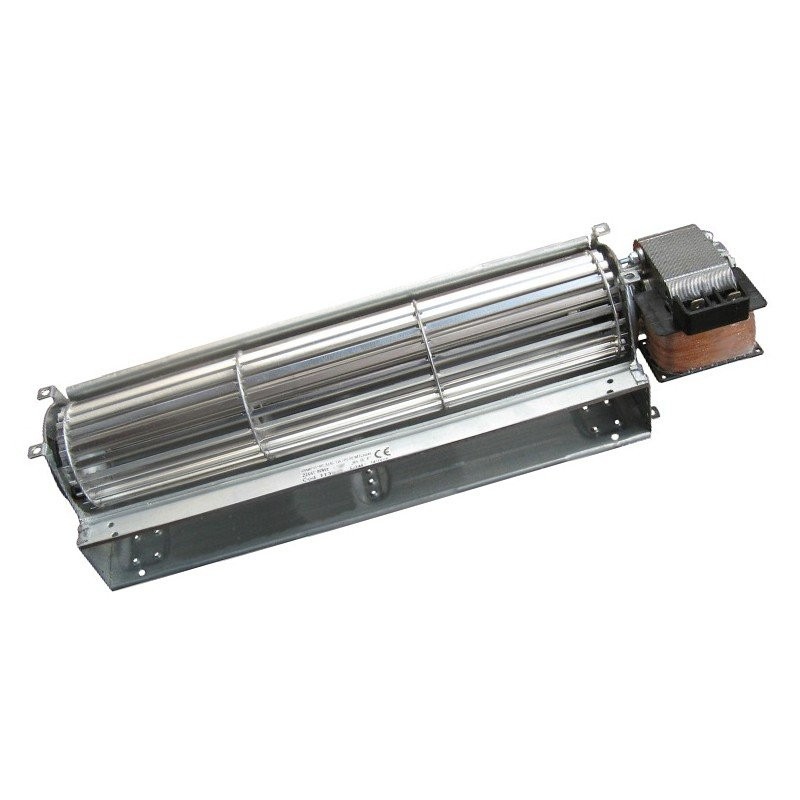

    TANGENTIAL FAN TGA60/1 300/40 113908
    TANGENTIAL FAN TGA60/1 300/40 113908
    TANGENTIAL FAN TGA60/1 300/40 113908
    TANGENTIAL FAN TGA60/1 300/40 113908
    TANGENTIAL FAN TGA60/1 300/40 113908
    TANGENTIAL FAN TGA60/1 300/40 113908

    TANGENTIAL FAN TGA60/1 300/40 113908

    €98.00
    Tax Included
    Return policy:14
    Quantity :
    account_circleShare
    TANGENTIAL FAN TGA60/1 300/40 113908

    TANGENTIAL FAN TGA60/1 300/40 113908



    DescriptionFERGAS 4M7276 Tangential Fan

    Fan diameter: 60 mm

    Fan length: 300 mm

    Total length: 394 mm

    Nozzle dimensions: 304x40 mm

    Flow rate: 237 m³/h

    Reed valve pack: 40 mm

    Power: 56 W

    Specific for high temperatures.
    SKU14706028
    CharacteristicsTangential fan for pellet stove T A 60
    1-300
    40 FERGAS 4M7276 specific for high temperatures is a silent product
    compact and extremely reliable.
    The fan impeller with a diameter of 60 mm
    It produces a vortex motion that allows for the production of a stable and well-distributed air flow with a flow rate of 237 m³
    h.
    Furthermore, the small size
    total length 394 mm
    air outlet nozzle dimensions 304x40 mm
    allow the tangential fan to be more easily adaptable to different applications.
    Equivalent to the following tangential fans EMMEVI - FERGAS 113905 - 113907 - 113908 - 113805 - 113909 - 113914 - TRIAL THS30B6-027 - I4M7276-00
    Mount on stoves
    CADEL ref. COM0268 mod. Adina
    CADEL ref. 4D14513004 mod. Cloe - Cloe3 - Cristal - Cristal 7 KW - Cristal 8
    5 KW - Diana - Evo - Family - Kriss - Nice - Rondò - Tecna - Venus3 plus
    CADEL ref. 4D145150120 mod. Sweet
    EDILKAMIN ref. 743910 mod. Brio
    ZIBRO ref. COM0268
    Newgardenstore
    LR14706028
