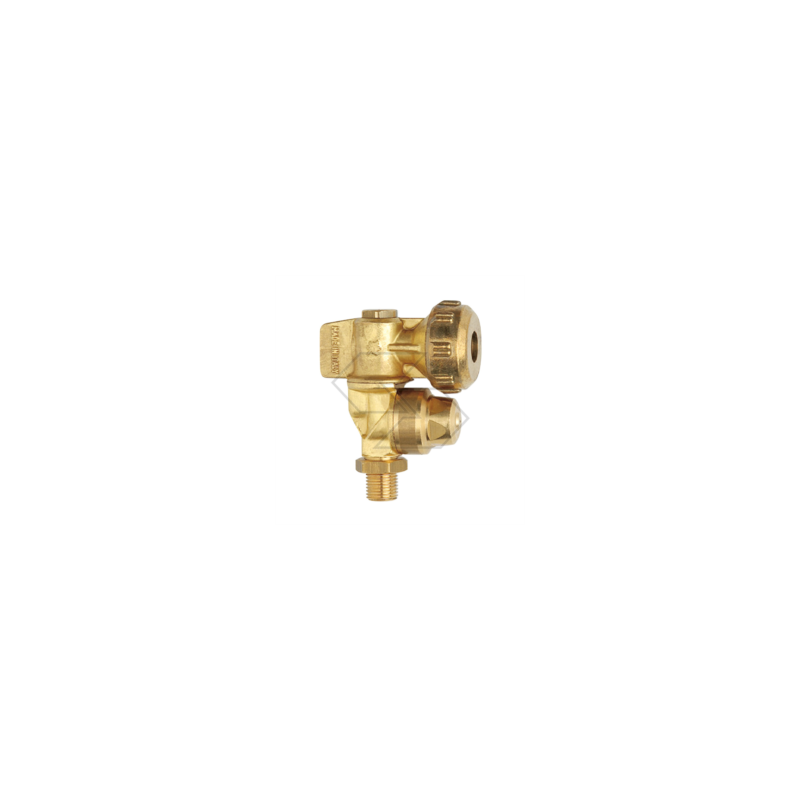

Atomizing jet with anti-drip - Nozzle Ø 30 mm - Hole Ø 1.5 mm A15649

Regular price: €49.00 (Save 14%)
Price: €42.14
Tax included

Share

NameAtomizing jet with anti-drip - Nozzle Ø 30 mm - Hole Ø 1.5 mm
MPNA15649
EAN8023668267716
InformationTechnical information:
Attack
G 1/4 M
Material
Ceramic
Nozzle
Ø 30
Diameter F
1.5
Maximum pressure (bar)
40
Conveyor hole diameter
Ø 1.2 drilled
Used in:
Braglia atomizing jets
Notes• Materials: brass-stainless steel EPDM/NBR seals
ceramic nozzle.
• Use: on atomizers. By rotating the nozzle holder body
the “OPEN” and “CLOSED” positions are obtained. the jet
is “OPEN” when the nozzle and the reference on the pin are
facing the same direction. Additional “OPEN” positions
± 15° from the vertical. Each position is indicated by a
spring catch snaps.
