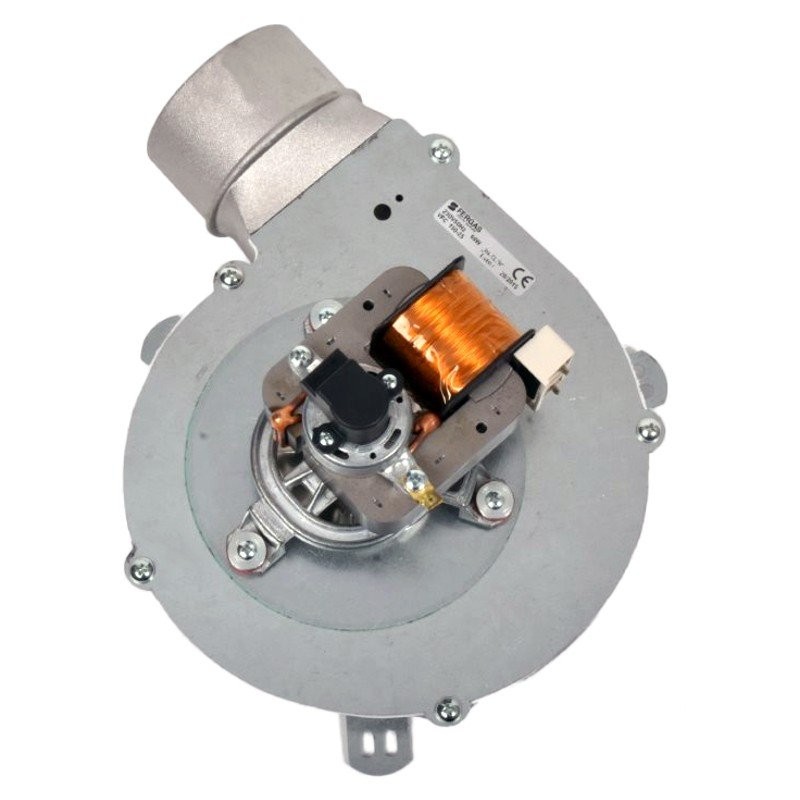

    DescriptionFERGAS 260921 Smoke Extractor - Exhaust Fan

    Pressure generated: up to 261 Pa

    Maximum flow rate: 173 m3/h

    Number of revolutions: up to 2590 RPM

    Power: 48 Watts

    Delivery flange: diameter 80 mm

    Fan diameter: 150 mm

    Equipped with Hall effect sensor.
    SKU14706016
    CharacteristicsExtractor
    smoke extractor  EMMEVI - FERGAS  VFC 1-160
    S cod. I260921-00 - 260921 designed for use in pellet stoves and biomass boilers.
    Equipped with a snail with an 80mm diameter outlet and a stainless steel impeller.
    Designed to generate pressures up to 261 Pa with a maximum flow rate of 173 m3
    h.
    Equipped with a mouthpiece for the smoke exit pipe and a Hall effect sensor (encoder)
    with insulation class H
    Can replace the AACO ST25 150.OR.20.54 and ST25 150.OR.25.54 extractor
    Equivalent EMMEVI ref. 260428 - 260426 -260910 - 260190 - I260910 - 260910 - I260905 - 260905
    Mount on stoves
    ANSELMO COLA ref. 453554201 - 599001060 mod. Camilla
    ECOTECK ref. 55104
    FERROLI ref. 453554201 - 599001060 mod. Marte Extra
    NORDICA EXTRAFLAME Ref. 002271010 - 2271010
    NORDICA EXTRAFLAME Ref. 002271016 - 2271016
    RAVELLI ref. 55104 mod. Lisa 2005 Interchangeable with 20000-25-001 and 20000-25-101
    SIDEROS
