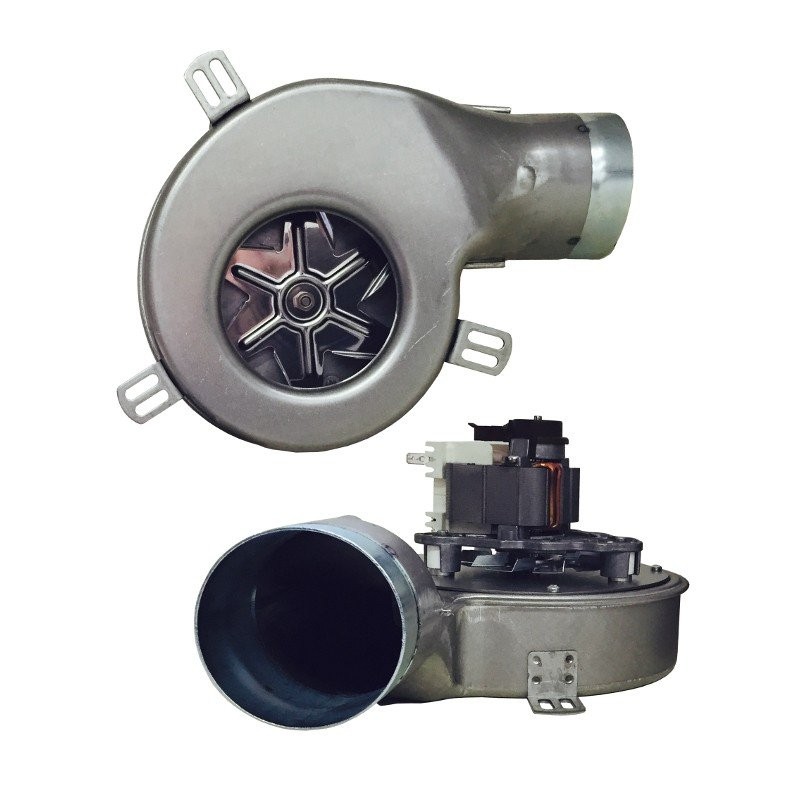

EBM EXTRACTOR G2E152/0020-3030LH-609

Price: €156.00
Tax included
Share

DescriptionExtractor - smoke extractor for pellet stoves.

Pressure generated: up to 280 Pa

Maximum flow rate: 165 m3/h

Number of revolutions: up to 2760 RPM

Power: 46 Watts

Delivery flange: diameter 80 mm

Fan diameter: 150 mm

Equipped with Hall effect sensor.
SKU14706009
CharacteristicsExtractor
EBM G2E152 smoke extractor
0020-3030LH-609 designed for use in pellet stoves and biomass boilers.
Equipped with a snail with an 80mm diameter outlet and a stainless steel impeller.
It can be mounted to replace the SIT GROUP LN2 NATALINI PL21 extractors.
Designed to generate pressures up to 280 Pa with a maximum flow rate of 165 m3
h.
Equipped with a mouthpiece for the smoke exit pipe and a Hall effect sensor (encoder)
with insulation class H
For stoves
ANSELMO COLA ref. 599001630 - 453562001 mod. Ambra - Ambra Lux - Aurora - Cupido - Free HR
ANSELMO COLA ref. 599004890 mod. Blues
BESTOVE ref. PS.101.02 - PS10102 mod. Milo
EL.FIRE ref. SML506-04
ELITE mod. ELSE95AUB3N-ECO
EQUATION mod. EQ10
FERROLI ref. 599001630 - 453562001 mod. Lyre - Mercury
FIRE LINE mod. Martina
KARMEK ONE ref. SML506-04 mod. Alice 2018 ducted - Asia - Berlin 1 - Bilbao - Bonn - Florence - Florence Plus - Ibiza - Ibiza S - Ibiza SC - Leon - Leon S - Leon S Plus - Leon SC Plus - Lisbon - Lisbon S - Lucca Plus - Oslo - Rome - Valencia S Plus - Vigo - Vigo S - Vigo S Plus - Vigo SC Plus
NORDICA EXTRAFLAME Ref. 002271059 - 2271059 Mod. Giusy
