ROBOT LAWN MOWER

KRESS KR230E

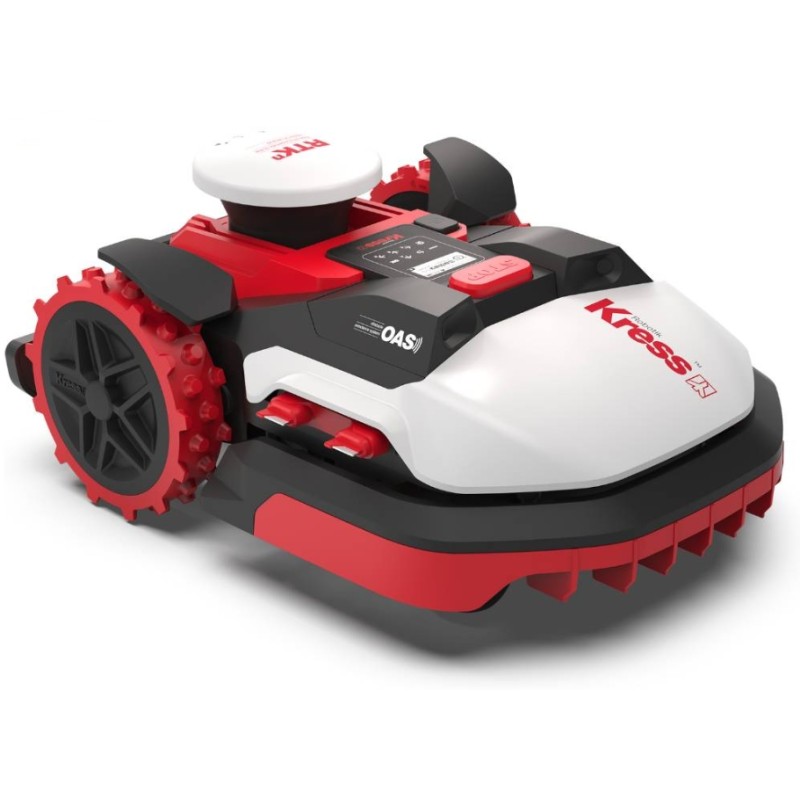

The new Kress KR230E robotic lawnmower

RTKn offers accuracy

absolute without additional hardware

on your property. No antennas.

No beacons. No border cables.



Precision mowing with RTK

RTK is a cutting-edge geo-positioning technique

which tunes satellite signals to obtain

unprecedented precision.



Uninterrupted precision in the shade

If satellite signals are obstructed by buildings or trees,

Kress lawnmowers go into dead mode

reckoning to maintain a precise path,

until it becomes available again

a clear satellite connection.



Satellite-guided centimeter precision

The advanced antenna network of the Kress base station

transmits precise correction data directly

to each lawnmower, ensuring a

unparalleled precision in cutting

of every single blade of grass.



Master of complexity

Guided by satellites, the Kress RTKn is capable

to navigate complex landscapes and also follow

the most tortuous routes from one area to another.



Maintain control

The Kress app can manage up to 10 lawnmowers

robots at the same time.

For the supervision of operations of

extensive maintenance, at the beginning of the

Spring is coming, the specialized app

in fleet management.



Automatic blade leveling system

The floating blade deck automatically adjusts

to the irregularities of the terrain,

ensuring a uniform cut

and preventing turf scalping.





TECHNICAL SPECIFICATIONS

Low inertia blades: Yes

Front wheels: 2

USB: Yes

Weight: 14.4 kg

4G: Yes

Battery voltage: 20V

Auto Lock: Yes

Maximum area (cutting every 72h): 12000 m2

Anti-theft system: Yes

Quick Return: Yes

Teamwork: Yes

Navigation model: Systematic

Recommend area (cutting every 48h): 8000 m2

OAS - Obstacle Avoidance System: Yes

OTA (Over-The-Air): Yes

Mowing speed: 0.6 m/s

Fleet Management (OTA): Yes

Battery capacity: 10 Ah

Maximum gradient: 40%

Water protection index (IP code): IPX5

Weatherproof: Yes

Display: LCD

App: Yes

Slide disc: Yes

Lift sensor: Yes

PIN Code: Yes

Self-leveling blade disc: Yes

Cutting blades: 3

Cutting height adjustment: Electronic

Cutting width: 22 cm

Charging current: 7 A

Cutting height: 30 - 60 mm

Side loading: Yes

Cutting Methods: Logic

Size: 647x470x290 mm



INCLUDED IN THE PACKAGE

Charging base: 1

Charging base fixing nails: 6

RTK Antenna: 1

Magnetic strip: 1

Hex keys: 1

RTK antenna key: 1

Meter: 2

Disk fixing screws: 6

Blade fixing screws: 9

Blades: 9

Hex screwdriver: 1

Kress Mission RTKn KR230E: 1

Battery (KA3010): 1

Charger (KA3717 / KA3817): 1

U-shaped wheel brush: 2

Wheel Brush Screws: 6

Staples: 16

Sliding disc screws: 6

Wheel brush hex key: 1

Bearing fixing screws: 2

Charging battery: 1





CODE:KR230E
