ROBOT LAWN MOWER

SEGWAY NAVIMOW

TERRANOX CM120M1



Your partner for productivity.

Professional. Intelligent.



Segway Navimow provides efficient solutions,

professionals for maintenance

of the lawn and we are committed to helping our partners address

labor shortage, improve efficiency and quality of

mowing and reduce operating costs.

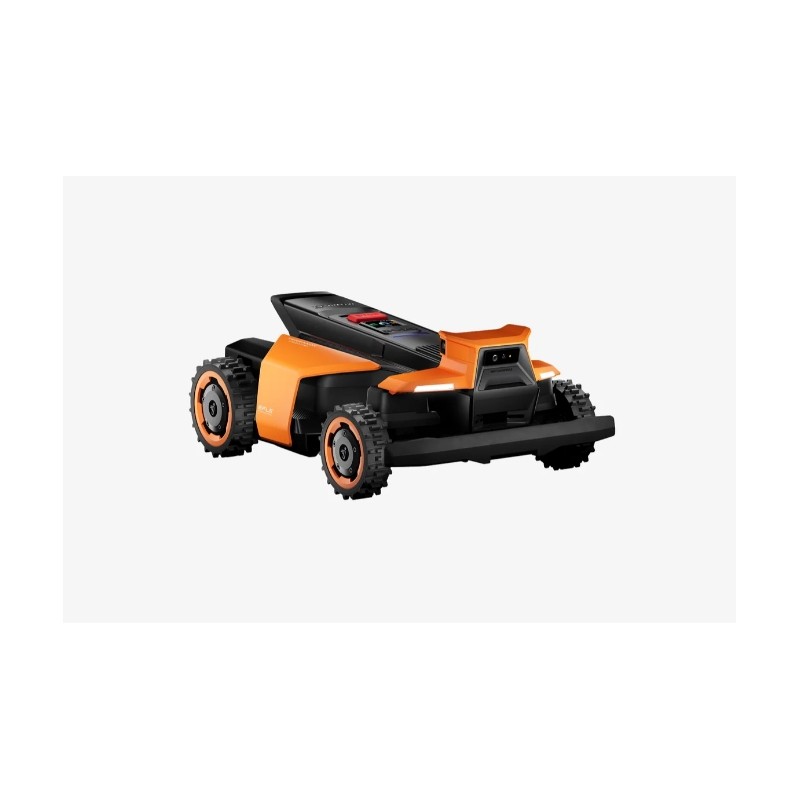

Navimow Terranox robot lawnmower

Autonomous operation

For all terrains

Positioning system

and precise automatic mapping

Continuous operational functionality,

24/7



NavimowFleetTM

24-hour monitoring

24/7

Remote control

of the robot lawnmower

Simple management



Assistance and

Navimow support

Full warranty

Over 400 service centers

Full service



TECHNICAL DATA

Maximum mowing area: 12000 m2

Dimensions: 850×610×351 mm

Net weight: 29.6 kg

Localization system: EFLSTM nRTK (nRTK + 360-degree vision + VIO)

Object Detection System: VisionFenceTM (360-degree RGB Camera + ToF)

Drive motor: 4WD with dual independent steering motors

Noise level: 66 dB (A)

Protection level: IP66

Weather Adaptation: Weather forecast + new rain sensor

Maximum slope capacity: 84% (40 degrees)

Antenna Installation Request: Optional

Automatic mapping: Yes

Automatic recharge: Yes

Vertical clearance: 7 cm (15 cm for gentle slopes)

Multi-zone management: Yes

Signal Booster Antenna: Yes

Battery capacity: 20 Ah

Charging time: 145 minutes

Mowing time on a full charge: 145 minutes

Continuous mowing area (24 hours): 7200 m2

Cutting height: 20 - 95 mm

Manual cutting height adjustment: Auto

Cutting width: 43 cm

Floating cutting system: Yes

Cutting deck with blade protection: Yes

Cutting disc: 2 discs, 12 blades

GPS Tracking: Yes

Out of border alert: Yes

Object Recognition: Over 200

Warranty: Device 2 years / Battery 1 year

Connectivity: Bluetooth, Wi-Fi, and cellular

Screen: 3.5 inch LCD

OTA Update: Yes





CODE:CM120M1
