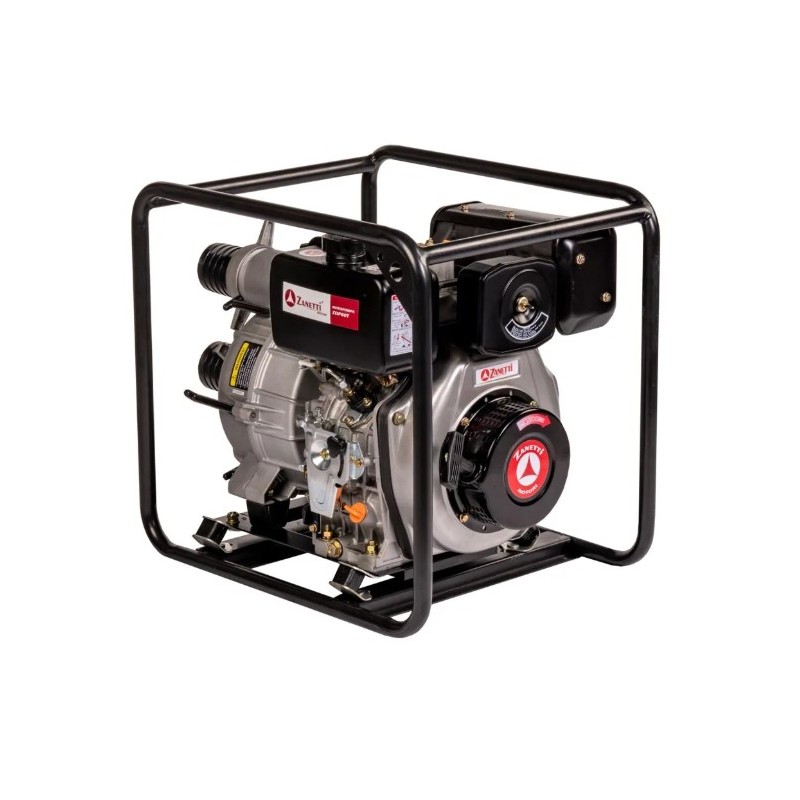

ZANETTI ZDP80TV low head self-priming diesel motor pump turbid water
MOTOR PUMP
DIESEL SELF-PRIMING
LOW HEAD
ZANETTI ZDP 80 TV
The 3" ZDP 80 TV
diesel motor-pump for turbid water with inspectable pump
is ideal for pumping dirty water containing
solids with a diameter of less than 30 mm.
PROFILE SPECIFICATIONS
Pump type: Self-priming - turbid water
Suction diameter: 80 mm (3")
Discharge diameter: 80 mm (3")
Suction height (m): 7
Maximum head (m): 28 at zero flow
Maximum flow rate (Lt/min) 1000
Motor model (Kw): ZDM 78 - 4,4 kW
Starting: recoil start
Tank capacity (Lt): 3,5
Dimensions mm (WxLxH): 585x460x535
Dry weight (Kg): 52
Fittings kit: Yes
Pump material: Aluminium
Intended use: Turbid water
CODE: ZDP 80 TV
-
Brand
-
ReferenceZDP 80 TV
-
EAN136150400158147
-
Potenza (Hp)5,9
-
Tipo avviamentoA strappo
-
AccessoriSi
-
Portata (L/min)1000
-
Tipo motore4 tempi
-
PortatileNo
-
RuoteNo
-
Auto adescanteSi
-
Diametro raccordi (mm)80
-
Cilindrata (cc)306
-
Pescaggio Max (m)7
-
Prevalenza Max (m)28
-
AlimentazioneDiesel
-
Peso (Kg)52
-
CarrellataNo
