CHARGING MANAGEMENT

STIHL CM 10

Connect up to 10

charger in mode

simple and reliable.

STIHL CM 10 Charging Management

It's a practical and intelligent charging solution,

designed especially for professionals

gardening and landscape care,

for public bodies and forestry companies.

Allows you to connect up to 10 chargers and

recharge up to 40 batteries

using a single electrical protection in the workshop.

The system can also be used on the move, for example

example on board a vehicle,

in combination with a mobile solution

like STIHL bott vario3.

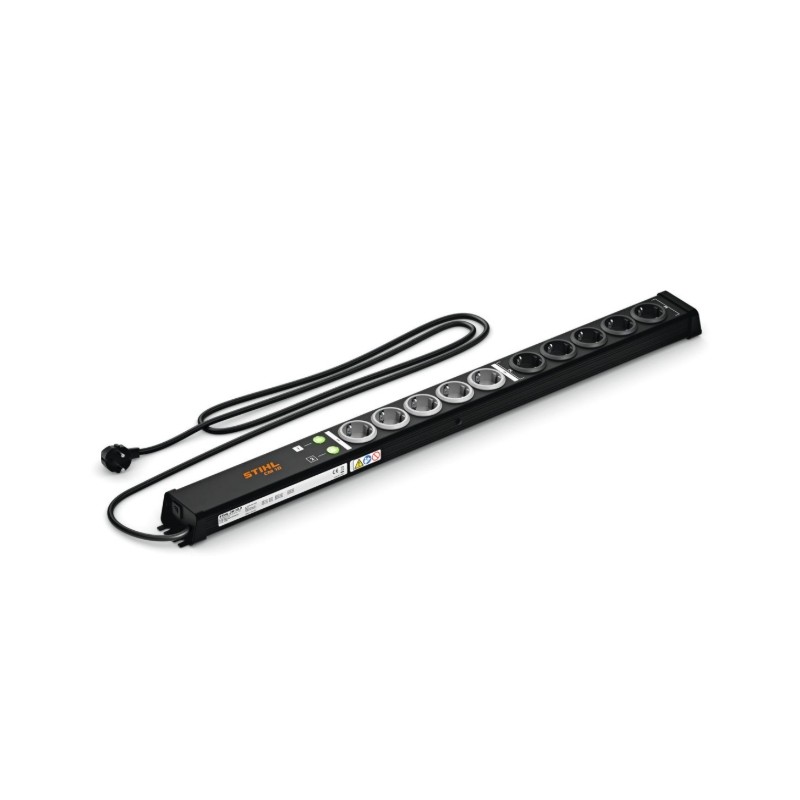

The CM 10 is equipped with 10 sockets,

divided into two groups of 5.

The operating principle is simple:

when all the batteries connected to the

group 1 are fully charged,

the system automatically switches to charging

of the batteries connected to group 2. This

allows you to optimize the charging capacity,

both in the workshop and during transport.

Intelligent charging management avoids

overloads and protects the electrical system,

ensuring a complete and reliable charge,

even during the night.

It is important to note that they must not be connected

other devices with the same electrical protection.

TECHNICAL DATA

Rated voltage: 230 V

Rated current: 12.5 A

Power consumption: 2875 W

Device weight: 1.5 kg

Frequency: 50 Hz

Protection class: THE

Number of slots: 10

Device Width: 74 mm

Device height: 47 mm

Device length: 866 mm

CODE:EA08-430-7930 EA084307930

ORIGINAL STIHL

MN
