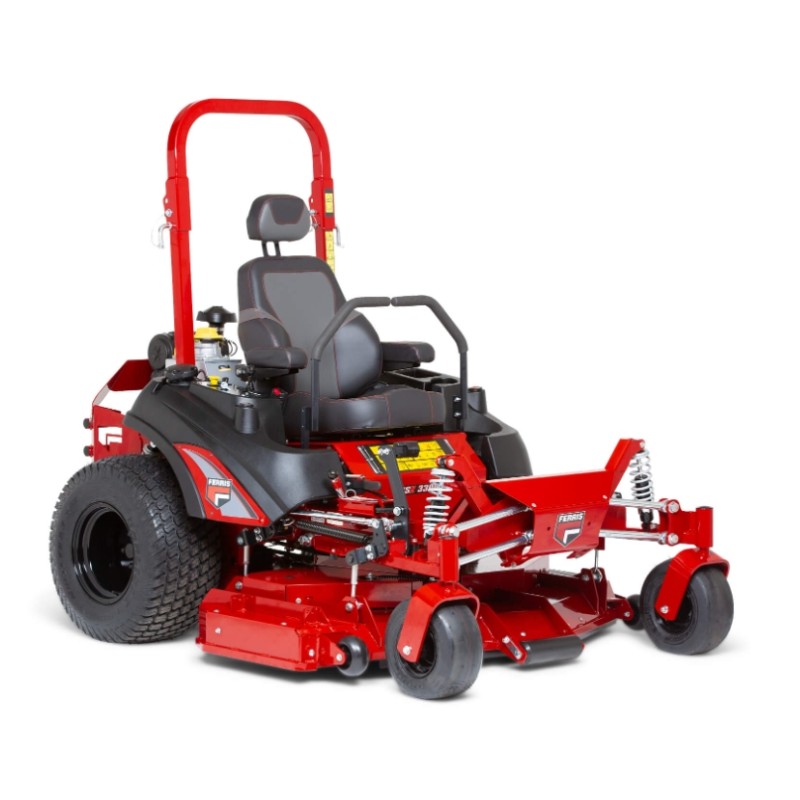

PROFESSIONAL TRACTOR LAWN MOWER

FERRIS ISX3300



The ISX3300 packs all the latest

latest in lawnmower technology.

Ferris improved his best project and made it

even more reliable and robust.



The patented suspension system

It will change the way you work:

slowness and discomfort will give way to productivity and

comfort. Manoeuvres become safer and more precise and the machine

It will last a long time thanks to the reduced stresses transmitted.



The brand new and unique system

of Forefront front suspension

double wishbone on the front wheels adds greater

control and comfort in cutting operations.

Hydro-Gear ZT-5400 independent integrated transmissions

Powertrains offer highly professional performance.



The lawnmower deck with iCD technology guarantees a perfect cut

always accurate and, thanks to the TRIPLE function, offers versatility

unique. The hydraulic lifting of the plate, operated by pedal,

further reduces operator fatigue.



ISX3300 is the ultimate machine for

professionals or for the most demanding users.



TECHNICAL DATA

Model : ISX3300

Motor: Briggs & Stratton Vanguard EFI BIG BLOCK

Power HP (KW): 40

Characteristics: Electronic throttle control

Displacement / Number of Cylinders: 993 / 2

Start-up:ANDliterary

Cooling:TOof air

Model / Transmission: ZT5400 separate Hydro-Gear pumps

Drive axles: 34.93mm tapered with 5-bolt flange

Front Axle: Swing front axle with shock absorbers

Feed speed: 0 – 20 km/h

Reverse speed: 0 – 10 km/h

Parking brake / Safety circuit: Disc in wet

of oil integrated into the transmission

Controls/Safety: Operator presence sensor with engine shutdown,

clutch safety switch, safety circuit

neutral and parking brake

Chassis:THEin steel

Tank capacity :42 liters

Cutting width / Deck type: 155 cm / 61" – Triple iCD

Lawnmower deck: Thickness 3.4 mm, double bottom, side protections

and 12.7mm front, overlapping and welded corners

Blades: 3, mulching

Positions / Cutting height: – / 3.8 – 12.7 cm

Anti-scalp wheels:Sthe

Inserting Blades:Cwith electromagnetic clutch

Mulching System:Paratia / mulching blades as standard

Blade pin supports: 257 mm cast iron,

30.16mm pin with grease nipples

Plate lifting system: Foot-operated hydraulic

Suspensions: Independent on 4 wheels

Rear wheel tires: 26 x 12.00 – 12 (4 canvases)

Front wheel tires: 13 x 6.50 – 6 (4 canvases)

ROPS Protective Structure:Si, with seat belts

Instrumentation:Fuel level indicator on each

tank, hour meter, engine malfunction warning light

Seat: Premium adjustable seat with armrests

Dry weight (Kg): 744



Accessories on request: Towbar, Service Kit for Briggs Vanguard EFI Engines

Oil Guard, Transmission Service Kit, Spare Wheels

puncture-proof front tires, Suspension seat,

Side discharge blade set, Jack lift
