TRACTOR LAWN MOWER

ZERO RADIUS ON THE FLYING WHEEL

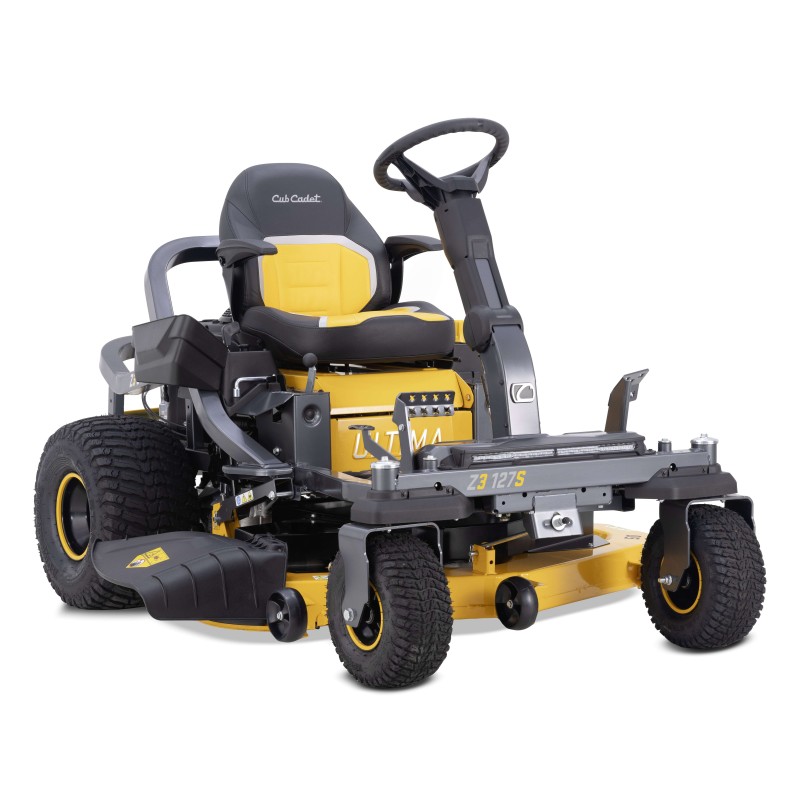

CUB CADET Z3 127S



This high-end zero-turn mower combines

professional robustness, superior comfort

and advanced features. Thanks to the tubular steel frame,

to optimized traction, to lighting

integrated and with a modern and attractive design, each

cutting operation becomes simple, precise and

safe. Ideal for those seeking high performance

and maximum reliability in every situation.



TECHNICAL DATA

MOTOR

Engine: Kawasaki FR691V

Displacement: 726 cc

Rated power: 114.5 kW / 2800 min

Cylinders: V-TWIN

Tank capacity: 13.25 L

Lubrication: Pressurized oil with external filter



TRANSMISSION

Transmission: Double hydro

Control: Foot pedal

Cruise control: -



CUTTING SYSTEM

Approximate hourly surface area: 11,500 m2/h

Cutting width: 127 cm

Cutting height (min - max): 25 - 114 mm

Cutting plate: Reinforced welded

Number of blades: 3

Blade engagement: Electromagnetic

Cutting height positions: 15 positions

Flat wheels: 2+ rollers

Wash nozzle / Mulching plug: Standard



COLLECTION

Basket: Optional

Deflector: Standard



CHASSIS

Front axle: Steel

Front bumper / Rear bumper: Steel tubular

Turning radius: 0 cm

Wheel bearings: Bronzes



ELECTRICAL SYSTEM

Battery: 210cca AGM

Lights: LED bar

Hour meter and service indicator: Standard

Security system: Standard



COMFORT

Seat: Premium, high back with armrests

Seat adjustment: Quick adjustment lever

Steering wheel: Soft-grip, with tilt adjustment

Tool holder / Cup holder / Tow hook: Standard

Reverse cutting: Standard



DIMENSIONS

Dimensions: 210 x 1353 x 116 cm

Net weight: 285 kg





CODE:17BIGGY2603
