TRACTOR LAWN MOWER

ZERO RADIUS ON THE FLYING WHEEL

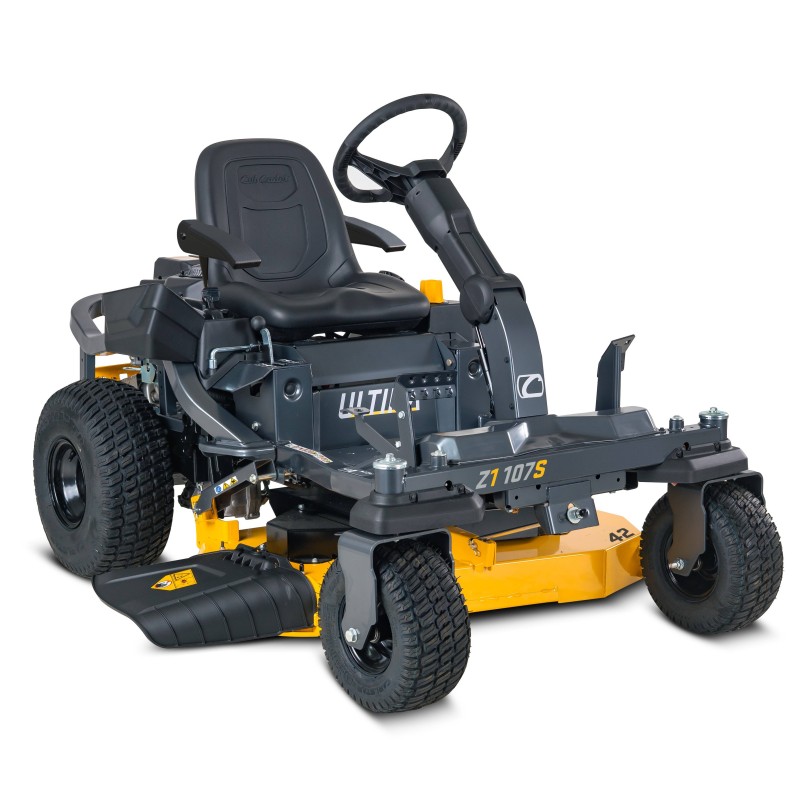

CUB CADET Z1 107S



Thanks to our proven robust tubular steel frame,

The Enduro Z1 series offers strength, comfort

and control to easily deal with even

the most demanding cutting jobs. His decisive style, the

solutions designed for comfort and precision

of the Zero Radius steering combine to give you a

machine that combines exceptional performance

to a design that does not go unnoticed.



TECHNICAL DATA

MOTOR

Engine: Cub Cadet

Displacement: 679 cc

Rated power: 11.9 kW / 2500 min

Cylinders: V-TWIN

Tank capacity: 13.25 L

Lubrication: Pressurized oil with external filter



TRANSMISSION

Transmission: Double hydro

Control: Foot pedal

Cruise control: -



CUTTING SYSTEM

Approximate hourly surface area: 10,000 m2/h

Cutting width: 107 cm

Cutting height (min - max): 25 - 114 mm

Cutting plate: Welded

Number of blades: 2

Blade engagement: Electromagnetic

Cutting height positions: 15 positions

Flat wheels: 2

Wash nozzle / Mulching plug: Standard



COLLECTION

Basket: Optional

Deflector: Standard



CHASSIS

Front axle: Steel

Front bumper / Rear bumper: Steel tubular

Turning radius: 0 cm

Wheel bearings: Bronzes



ELECTRICAL SYSTEM

Battery: 210cca AGM

Lights: -

Hour meter and service indicator: -

Security system: Standard



DIMENSIONS

Dimensions: 210 x 132 x 116 cm

Net weight: 267 kg





CODE:17BAGBYE603
