LEVER-OPERATED LAWN MOWER

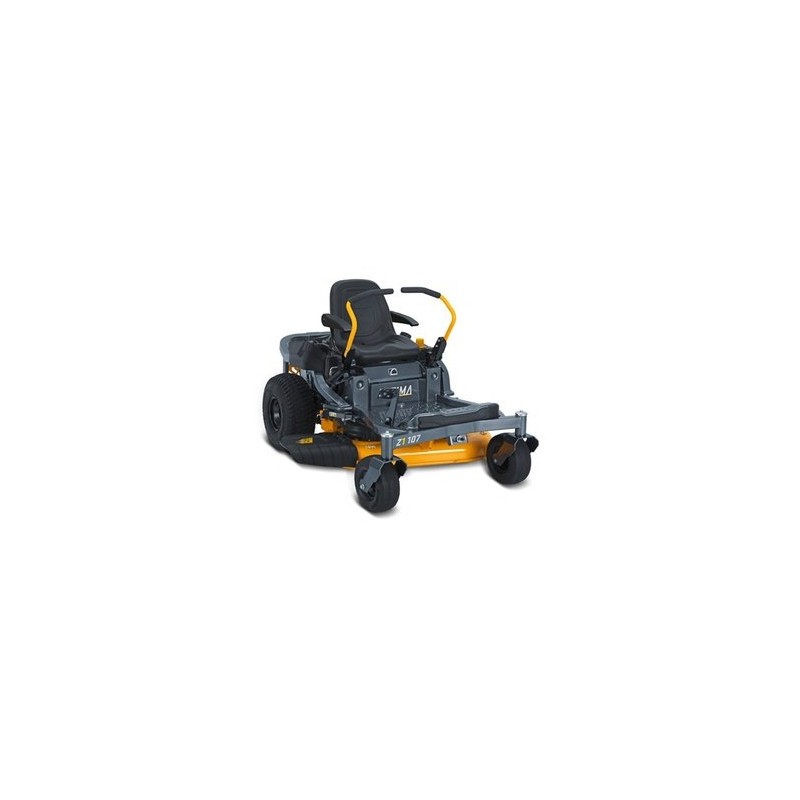

CUB CADET Z1 107



Thanks to our proven robust tubular steel frame,

The Enduro Z1 series offers strength, comfort

and control to easily tackle even the most demanding jobs

of more demanding cuts. His decisive style, the

solutions designed for comfort and precision

Zero Radius steering combine to give you a

machine that combines exceptional performance

to a design that does not go unnoticed.



TECHNICAL DATA

MOTOR

Engine: Cub Cadet

Displacement: 679 cc

Rated power: 11.6 kW / 2450 min

Cylinders: V-TWIN

Tank capacity: 13.25 L

Lubrication: Pressurized oil with external filter



TRANSMISSION

Transmission: Double Hydro

Control: Lever



CUTTING SYSTEM

Approximate hourly surface area: 10,000 m2/h

Cutting width: 107 cm

Cutting height (min - max): 25 - 114 mm

Cutting plate: Printed

Number of blades: 2

Blade engagement: Electromagnetic

Plate height positions: 15 positions

Flat wheels: 2

Wash nozzle / Mulching plug: Standard



COLLECTION

Basket: Optional

Deflector: Standard



CHASSIS

Front axle: Steel

Front/Rear Bumper: Tubular Steel

Turning radius: 0 cm

Wheel bearings: Bronzes



ELECTRICAL SYSTEM

Battery: 210cca AGM

Security system: Standard



COMFORT

Seat: High back with armrests

Seat adjustment: Quick adjustment lever

Steering wheel: 2 adjustment levers with soft-grip coating

Tool holder / cup holder / tow hook: Standard

Reverse cutting: Standard



DIMENSIONS

Dimensions: 203 / 132 / 114 cm





CODE:17CAEACS603







MN
