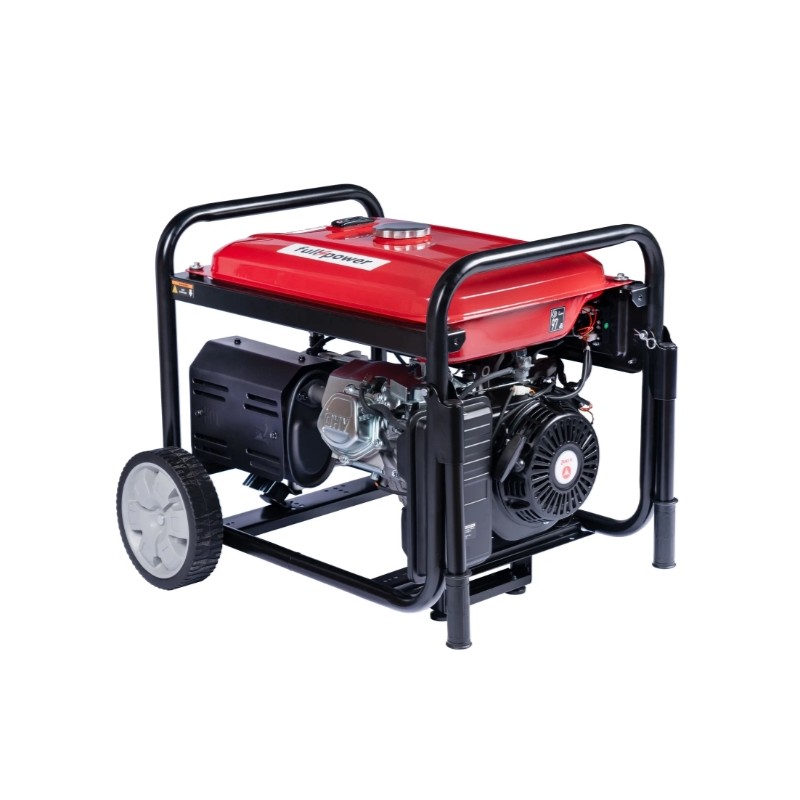

Open petrol generator ZANETTI ZBG7003CEA 420cc single phase three phase 230V 400V

Regular price: €1,079.00 (Save 10%)
Price: €971.10
Tax included

Product availability: Last items in stock
  • Brand
  • EAN
    6150400168184
  • MPN
    ZBG7003CEA
Share

PETROL GENERATOR

OPEN

ZANETTI ZBG 7003 CEA



The Full power petrol generator series,

It has almost identical output power

both single-phase and three-phase

unlike standard three-phase generators

where the single-phase power is reduced to 1/3.

Equipped with AVR voltage regulator

able to guarantee stability to the voltage values

and output frequency.

They are designed for connection

to the ATS intervention control unit, allowing

the automatic start of the

generator in case of interruption

of electricity from the grid.



SPECIFICATIONS

Type: Single Phase/Three Phase

Maximum power (kW max 5 minutes): 7 (400V) / 6.5 (230V)

Continuous power (kW): 6.5 (400V) / 6 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Tank capacity (Lt): 27

Autonomy at 50% (h): 11

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 88

Dimensions mm (LxWxH): 694x528x763

Socket Type: 1x32A/220V + 1x16A/380V

Engine type: ZBM 420

Engine displacement(cc): 420

Engine power Kw: 9,1

Engine speed (rpm): 3000

Engine Cooling: Air

Engine Start: Self-recoil - Electric

Voltage Regulator: AVR

IP protection class: IP23M

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: Yes

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: No

Frame: Open



CODE:ZBG 7003 CEA





MN







  • Brand
  • Reference
    ZBG7003CEA
  • EAN13
    6150400168184

  • Potenza (Hp)
    12,2
  • Capacità serbatoio (L)
    27
  • Tipo avviamento
    Elettrico
  • Tipo motore
    4 tempi
  • Portatile
    No
  • Cilindrata (cc)
    420
  • Avviamento automatico (ATS)
    Si
  • Corrente
    Trifase
  • Inverter
    No
  • Potenza Max (kW)
    7
  • Sistema AVR
    Si
  • Silenzioso
    No
  • Alimentazione
    Benzina
  • Display
    Si
  • Peso (Kg)
    88
