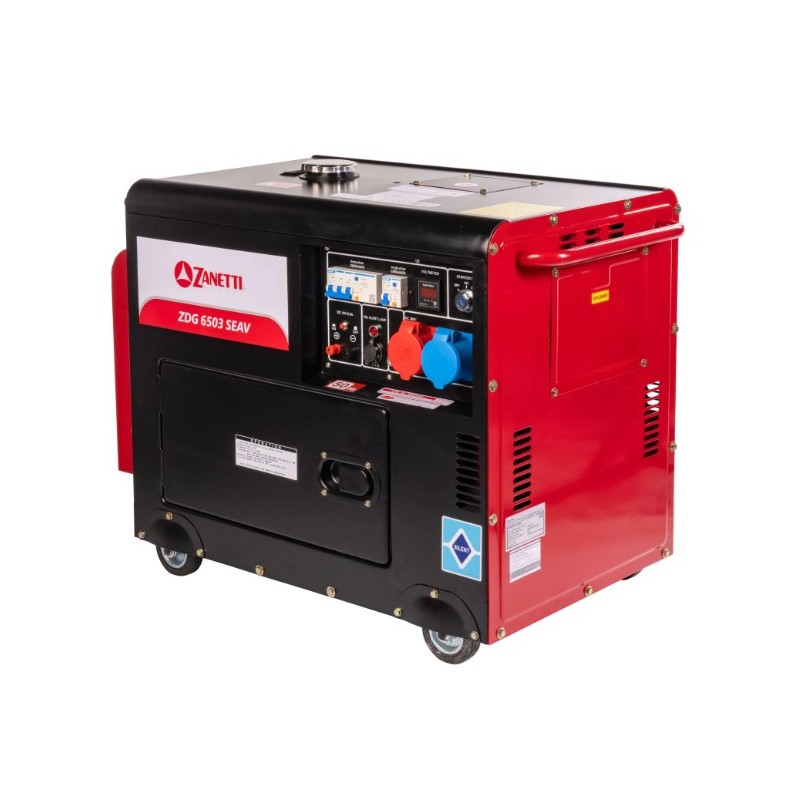

SILENT DIESEL GENERATOR

ZANETTI ZDG 6503 SEAV

The Full power diesel generator series,

thanks to a revolutionary technology it has power

with almost identical output in both single-phase and three-phase

difference from standard three-phase generators

where the single-phase power is reduced to 1/3.

All generators in the series are equipped with a regulator

AVR voltage capable of ensuring

great stability at voltage values

and output frequency and copper alternators.

The ZDG 6503 SEAV generators are

ready for connection

to the ATS intervention control unit, allowing

automatic generator start in cases

of power outage

electricity of the network.

SPECIFICATIONS

Type: Single Phase/Three Phase

Maximum power (kW max 5 minutes): 4.5 (400V) / 4.5 (230V)

Continuous power (kW): 4.2 (400V) / 4.2 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 14

Autonomy at 50% (h): 7

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 149

Dimensions mm (LxWxH): 960x570x810

Socket Type: 1x16A/380V + 1x32A/220V

Engine type: ZDM 86

Engine Displacement (cc): 418

Engine power Kw: 6.3

Engine speed (rpm): 3000

Engine Cooling: Air

Engine start: Electric

Voltage Regulator: AVR

IP protection class: IP23M

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: Yes

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: Yes

Frame: Silenced

CODE:ZDG 6503 SEAV
