    IPC GEAR MOTOR 1.5rpm 9.5mm SHAFT 30

    IPC GEAR MOTOR 1.5rpm 9.5mm SHAFT 30

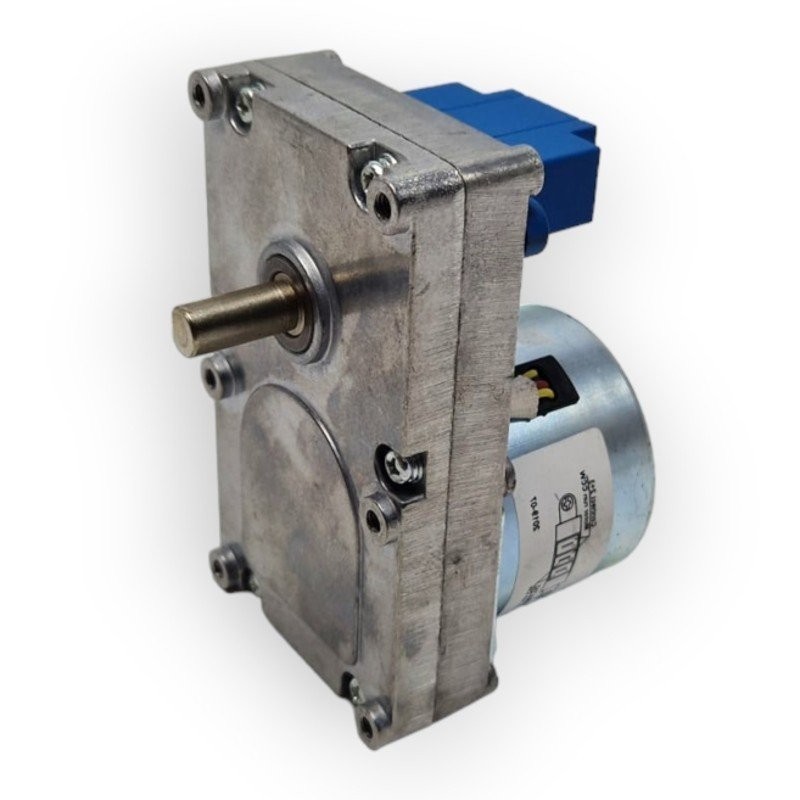

    DescriptionIPC GMF215D901 synchronous gearmotor

    Speed: 1.46 rpm.

    Power supply: 220V/240 V - 50/60 Hz.

    Shaft diameter: 9.5 mm.

    Flattening: single.

    Direction of rotation: CW/CCW.

    Rated torque: 18 Nm.
    SKU14702154
    CharacteristicsSuitable for use in applications where low speed and high torque are required, the IPC GMF215D901 synchronous gearmotor is specifically designed to be used as a rotor to power pellet stoves.
    Nominal torque 18 Nm
    absorption 13-23 Watts
    speed 1
    46 rpm
    clockwise or counterclockwise rotation depending on the connection
    shaft diameter 9
    5 mm
    220V power supply
    240 V AC - 50
    60 Hz.
