    IPC GEAR MOTOR 1rpm HOLLOW SHAFT 8.5mm

    IPC GEAR MOTOR 1rpm HOLLOW SHAFT 8.5mm

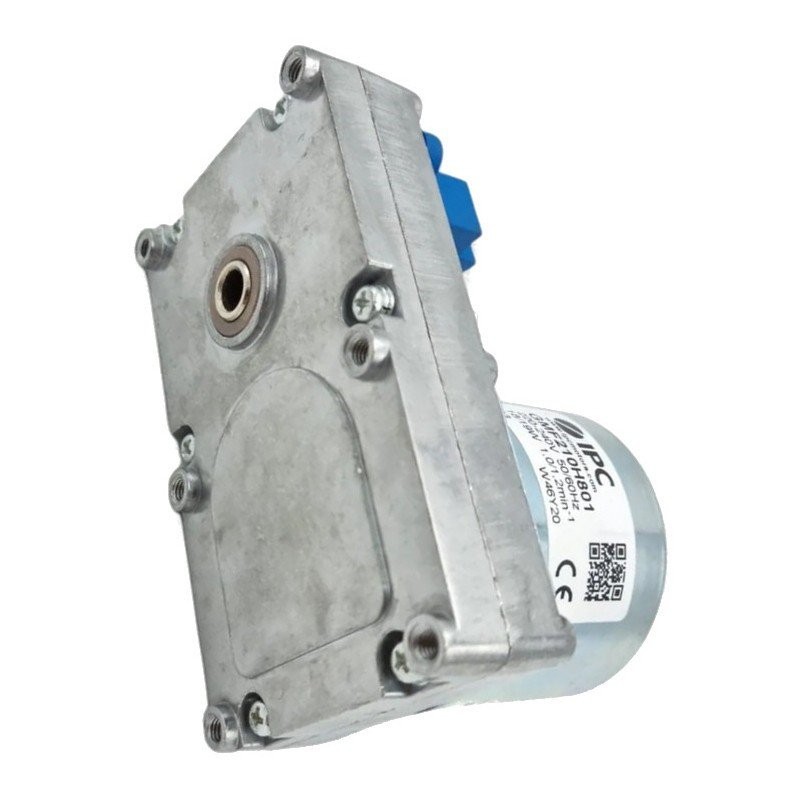

    DescriptionIPC GMF210H801 synchronous gearmotor

    Speed: 1 rpm.

    Power supply: 220V/240 V - 50/60 Hz.

    Shaft: hollow diameter 8.1 mm.

    Flattening: single.

    Direction of rotation: CW/CCW.

    Rated torque: 20 Nm.
    SKU14702153
    CharacteristicsSuitable for use in applications where low speed and high torque are required, the IPC GMF210H801 synchronous gearmotor is specifically designed to be used as a rotor to power pellet stoves.
    Nominal torque 20 Nm
    absorption 12-22 Watts
    speed 1 rpm
    clockwise or counterclockwise rotation depending on the connection
    hollow shaft diameter 8
    1 mm
    220V power supply
    240 V AC - 50
    60 Hz.
