    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm
    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm
    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm
    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm
    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm
    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm

    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm

    €140.00
    Tax Included
    Return policy:14
    Quantity :
    account_circleShare
    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm

    IPC GEAR MOTOR 2rpm 8.5mm SHAFT 25Nm

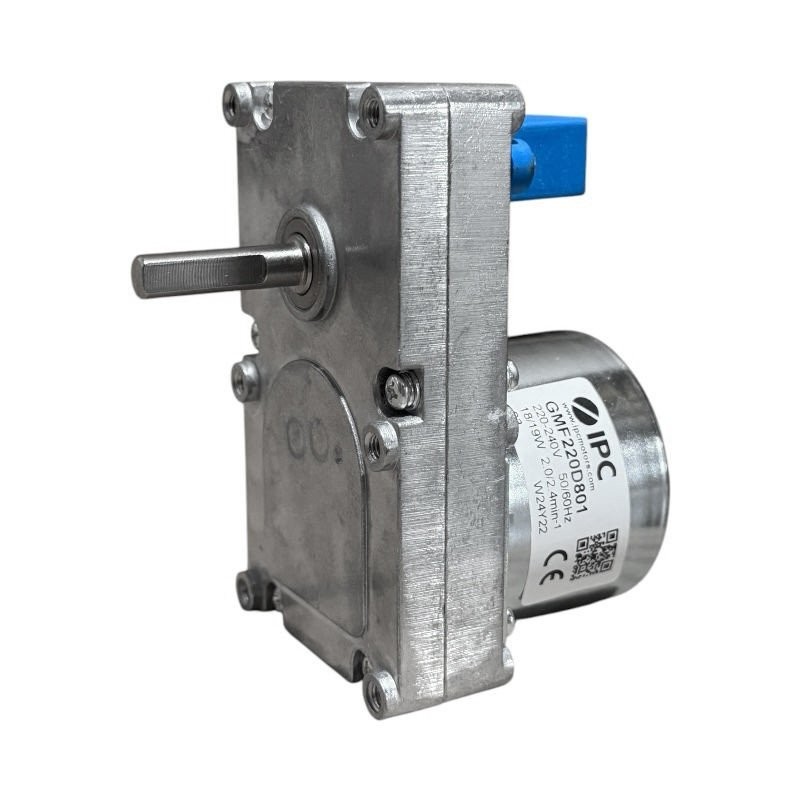

    DescriptionIPC GMF220D801 synchronous gearmotor

    Speed: 2 rpm.

    Power supply: 220V/240 V - 50/60 Hz.

    Shaft diameter: 8.5 mm.

    Flattening: single.

    Direction of rotation: CW/CCW.

    Rated torque: 18 Nm.
    SKU14702150
    CharacteristicsSuitable for use in applications where low speed and high torque are required, the IPC GMF220D801 synchronous gearmotor is specifically designed to be used as a rotor to power pellet stoves.
    Nominal torque 18 Nm
    absorption 12-20 Watts
    speed 2 rpm
    clockwise or counterclockwise rotation depending on the connection
    shaft diameter 8
    5 mm
    220V power supply
    240 V AC - 50
    60 Hz.
    Newgardenstore
    LR14702150

    Data sheet
