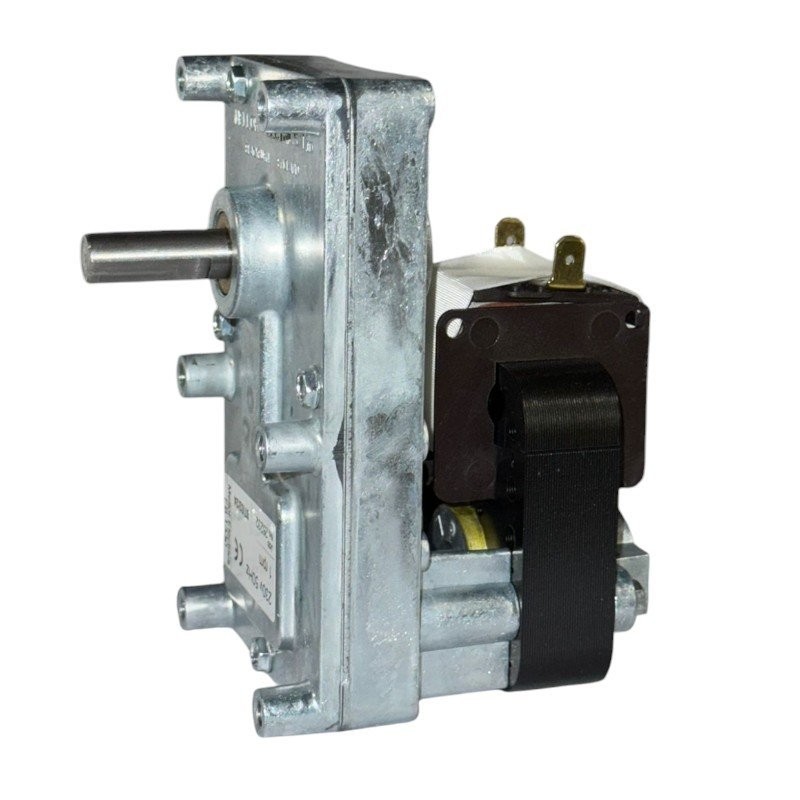

MELLOR FB1330 GEAR MOTOR 1rpm AL.9,5m
€159.00
Tax Included
Return policy:14
| Description | Mellor FB1330 Gearmotor Speed: 1 rpm. Reed valve: 19 mm. Shaft diameter: 9.5 mm. Flattening: single. Direction of rotation: clockwise. Rated torque: 28 Nm. |
|---|---|
| SKU | 14702011 |
| Characteristics | Suitable for use in applications where low speed and high torque are required, the FB1330 - FB1309 gearmotor is specifically designed to be used as a rotor to power pellet stoves. T3 Series nominal torque 28Nm absorption 13 Watt speed 1rpm clockwise rotation shaft diameter 9 5mm 19mm reed valve pack power supply 220 V AC - 50 60Hz. Equivalent Mellor FB1178 - FB1309 - FB1334 For stoves ENVIRO ref. EF-001 mod. Bern - EF2 - EF3 - EF4 - Meridian - Windsor ENVIRO ref. EF5-116 mod. EF5 Evolution KALOR MCZ PALAZZETTI ref. 895701330 ROYAL THERMOROSSI ref. 60011246 - MK GF4415 S8217 - mod. Hi - Compact 18 - Compact 18 class 5 - Compact 25 - Compact 32 - Compact 32 (2011) - Compact 32 class 5 - Cuba 10 - Cuba 12 - Dorica - Ecotherm 1000 - Ecotherm 1500 - Ecotherm 2000 - Ecotherm 3000 - Ecotherm 5000 - Ecotherm 6000 - Ecotherm 7000 - Ecotherm 8000 - H2O 18 - H2O 18 (2011) - H2O 25 - H2O 34 - H2O 34 Restyling - H2O 34 (2011) - Insert 49 - Insert 60 - Insert Line 490 - Insert Line 600 - Slim (All Series) |
LR14702011
