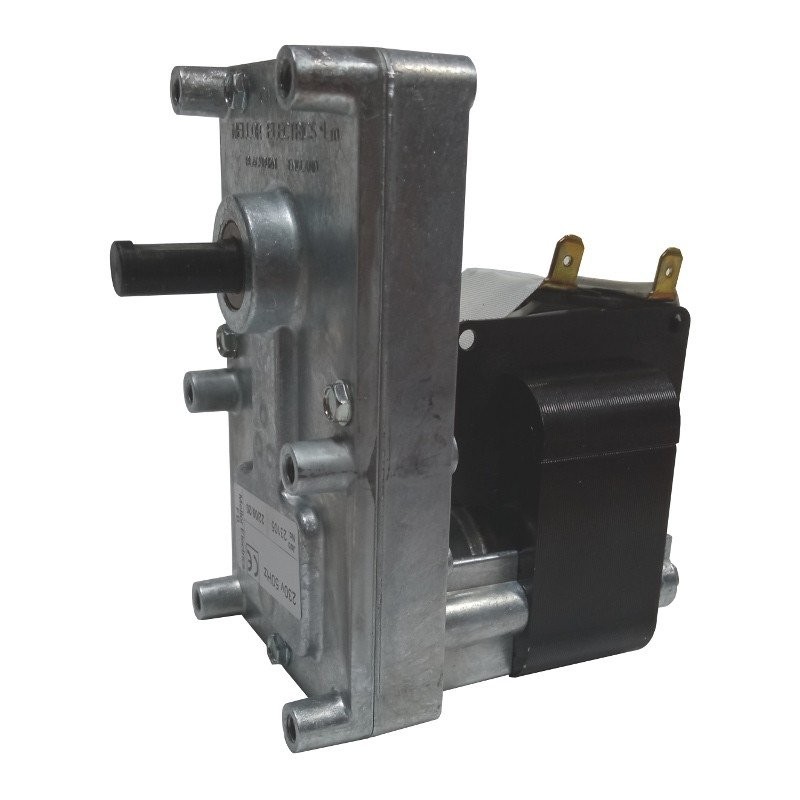

MELLOR FB1171 1.5rpm AL.9 GEAR MOTOR,

Price: €136.00
Tax included
Share

DescriptionMellor FB1171 Gearmotor

Speed: 1.5 rpm.

Reed valve: 25 mm.

Shaft diameter: 9.5 mm.

Flattening: single.

Direction of rotation: clockwise.

Rated torque: 24 Nm.
SKU14702002
CharacteristicsSuitable for use in applications where low speed and high torque are required, the FB1171 gearmotor is specifically designed to be used as a rotor to power pellet stoves.
T3 Series
nominal torque 24Nm
absorption 16
5 Watts
speed 1
5 rpm
clockwise rotation
shaft diameter 9
5mm
25mm reed valve pack
power supply 220 V AC - 50
60Hz.
Mount on stoves
ARCE ref. 1611909885 mod. Circle j - Circle j Plus - Hetna j - Hetna j Plus - Lexia j - Lexia j Plus - Mikrò - Mikrò j - Smart - Smart j
CADEL ref. 4160278 mod. Bistrot3 - Cloe - Cloe3 - Evo3 7KW - Rondò - Sweet - Wall3 plus
FIREPLACES MONTEGRAPPA ref. 1044000100 mod. As 6 - As 6 Evo - As 9 - As 9 Evo - Inside X9 - Inside - Pellet Plus 8000 Power - Pellet Plus 10000 - Pellet Plus 10000 Power - Pellet Plus 11000 - Pellet Plus 11000 Power
EDILKAMIN ref. 665180 - 268130 - 230560 (FB1191 - FB1133 - MERKLE GM-MD.S3456) mod. Alba Marea 2004 - Corolla Moena - Flexa - Folk - Inpellet 49 - Inpellet 54 - Iris 2004 - Iris 2005 - Iris plus - Iris with timer - Iris up - Junior - Lilia - Lilia plus - Little - Mariù - Pellet più 54 - Pellinsert 54 - Pellstar - Rose - Seven - Trend - Trend 2005 - Trend plus - Twin
ITALIAN FIREPLACES
PALLADIUM
