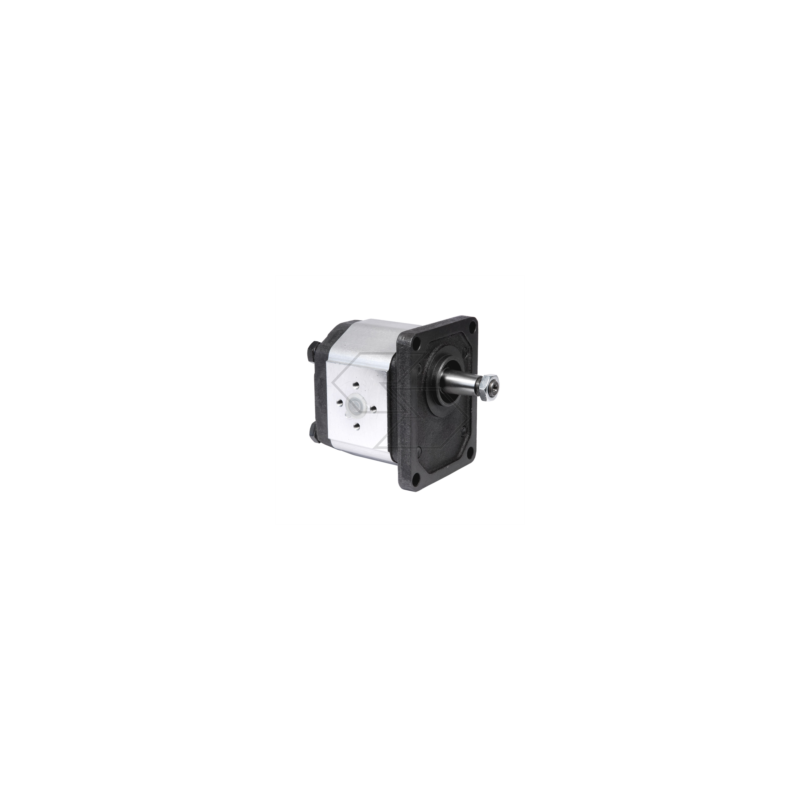

Gear pump group 2 right rotation - 2VP 16D - displacement 16 cm³ A09834

Regular price: €229.00 (Save 10%)
Price: €206.10
Tax included

Share

NameGear pump group 2 right rotation - 2VP 16D - displacement 16 cm³
MPNA09834
EAN8023668150254
InformationTechnical information:
Type
2VP 16D
B
40
H
M8
THE
54.4
D
20
M
112.7
d
13
Revolutions (rpm)
4000
h
M6
b
30
Displacement CC
16
Pressure P1 (bar)
250
Pressure P2 (bar)
265
Pressure P3 (bar)
280
Used in:
Gear Pumps Group 2
NotesGear pump group 2 right
B (intake flange center distance): 40 mm
D (Intake flange hole): 20 mm
L (distance between fixing holes): 54.4 mm
Type: 2VP 16D
H (SUCTION flange drill bits): M8
M (distance between fixing holes): 112.7 mm
Displacement CC: 16
h (flange drill bits DELIVERY): M6
Pressure P1: 250 bar
Pressure P2 (bar): 265 bar
Pressure P3: 280
b (distance between delivery flanges): 30 mm
d (flange hole delivery): 13 mm
Revolutions (rpm): 4000
