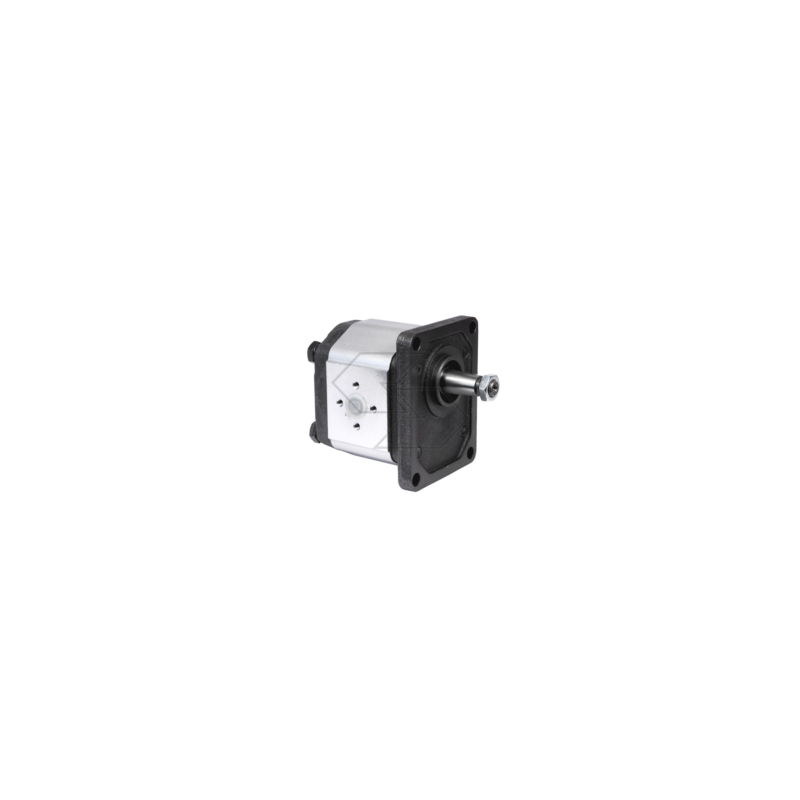

    Gear pump group 2 right rotation - 2VP 12D - displacement 12 cm³ A09830
    Gear pump group 2 right rotation - 2VP 12D - displacement 12 cm³ A09830

    Gear pump group 2 right rotation - 2VP 12D - displacement 12 cm³ A09830

    €207.37
    €233.00
    Save 11%
    Tax Included
    Return policy:14
    Quantity :
    account_circleShare
    Gear pump group 2 right rotation - 2VP 12D - displacement 12 cm³ A09830

    Gear pump group 2 right rotation - 2VP 12D - displacement 12 cm³ A09830



    NameGear pump group 2 right rotation - 2VP 12D - displacement 12 cm³
    MPNA09830
    EAN8023668150216
    InformationTechnical information:
    Type
    2VP 12D
    B
    40
    H
    M8
    THE
    51
    D
    20
    M
    105.9
    d
    13
    Revolutions (rpm)
    3000
    h
    M6
    b
    30
    Displacement CC
    12
    Pressure P1 (bar)
    270
    Pressure P2 (bar)
    285
    Pressure P3 (bar)
    300
    Used in:
    Gear Pumps Group 2
    NotesGear pump group 2 right
    B (intake flange center distance): 40 mm
    D (Intake flange hole): 20 mm
    L (distance between fixing holes): 51 mm
    Type: 2VP 12D
    H (SUCTION flange drill bits): M8
    M (distance between fixing holes): 105.9 mm
    Displacement CC: 12
    h (flange drill bits DELIVERY): M6
    Pressure P1: 270 bar
    Pressure P2 (bar): 285 bar
    Pressure P3: 300
    b (distance between delivery flanges): 30 mm
    d (flange hole delivery): 13 mm
    Revolutions (rpm): 3000
