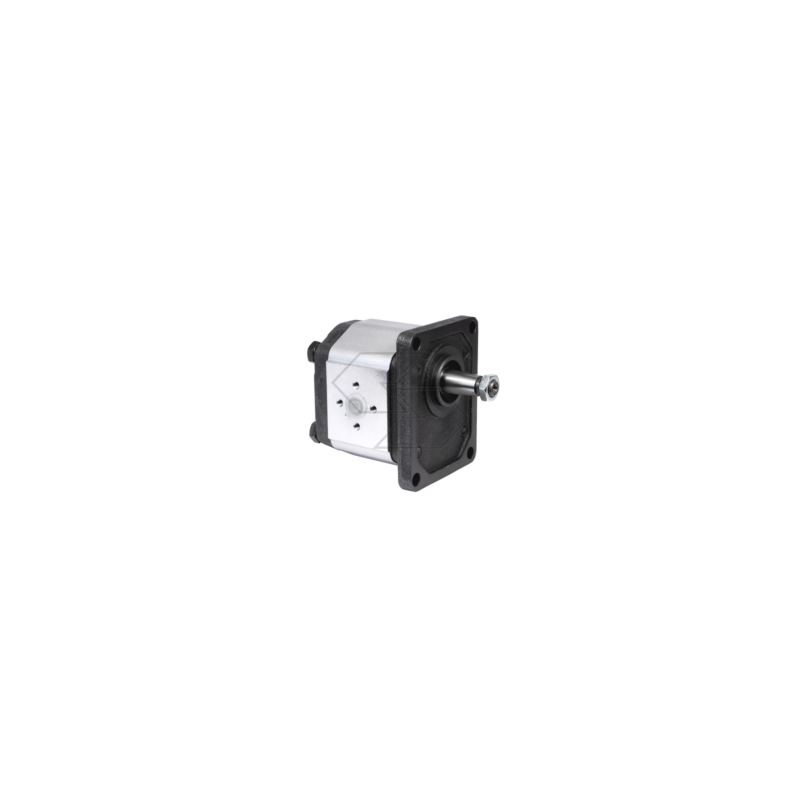

    Gear pump group 2 right rotation - 2VP 20D - displacement 20 cm³ A09836
    Gear pump group 2 right rotation - 2VP 20D - displacement 20 cm³ A09836

    Gear pump group 2 right rotation - 2VP 20D - displacement 20 cm³ A09836

    €204.70
    €230.00
    Save 11%
    Tax Included
    Return policy:14
    Quantity :
    account_circleShare
    Gear pump group 2 right rotation - 2VP 20D - displacement 20 cm³ A09836

    Gear pump group 2 right rotation - 2VP 20D - displacement 20 cm³ A09836



    NameGear pump group 2 right rotation - 2VP 20D - displacement 20 cm³
    MPNA09836
    EAN8023668150278
    InformationTechnical information:
    Type
    2VP 20D
    B
    40
    H
    M8
    THE
    57.7
    D
    20
    M
    119.3
    d
    13
    Revolutions (rpm)
    3200
    h
    M6
    b
    30
    Displacement CC
    20
    Pressure P1 (bar)
    220
    Pressure P2 (bar)
    235
    Pressure P3 (bar)
    250
    Used in:
    Gear Pumps Group 2
    NotesGear pump group 2 right
    B (intake flange center distance): 40 mm
    D (Intake flange hole): 20 mm
    L (distance between fixing holes): 57.7 mm
    Type: 2VP 20D
    H (SUCTION flange drill bits): M8
    M (distance between fixing holes): 119.3 mm
    Displacement CC: 20
    h (flange drill bits DELIVERY): M6
    Pressure P1: 220 bar
    Pressure P2 (bar): 235 bar
    Pressure P3: 250
    b (distance between delivery flanges): 30 mm
    d (flange hole delivery): 13 mm
    Revolutions (rpm): 3200
