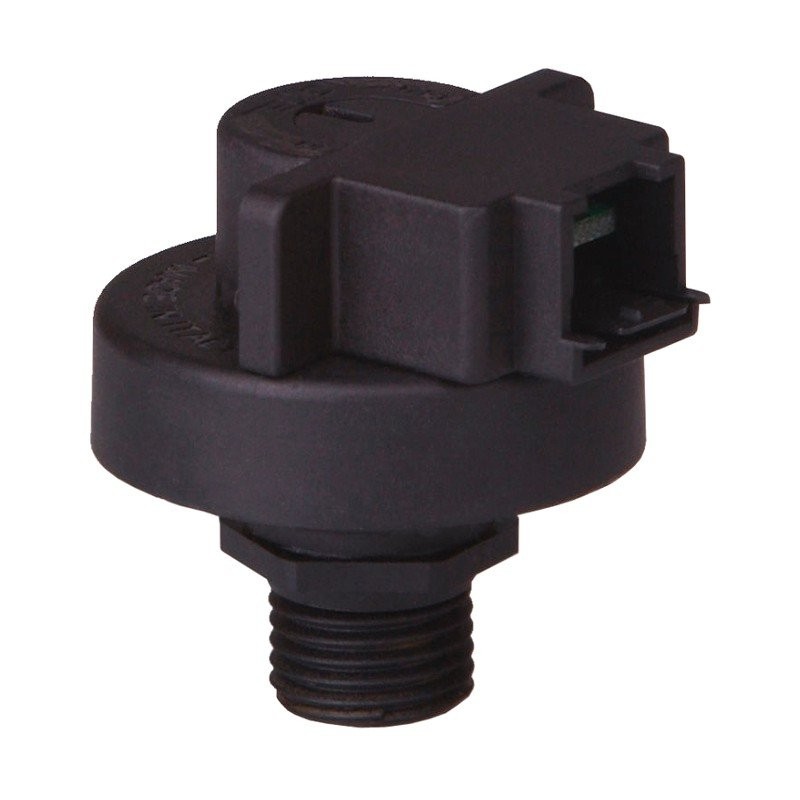

PRESSURE TRANSDUCER 0-4Bar CONNECTOR 1/4"
€25.00
Tax Included
Return policy:14
| Description | 1/4" pressure transducer Working range: 0 - 4 bar Connection: 1/4" with o-ring Power supply: 5 VDC Output signal: 0.5 to 3.5 VDC Current consumption: < 10 mA Max fluid temperature: 110 °C |
|---|---|
| SKU | 14707006 |
| Characteristics | The pressure transducer is normally used in the following sectors: heating (wall-mounted boilers and pellet stoves HYDRO) air conditioning systems boiler systems and industrial applications. The AISI sensitive element, based on the pressure received, moves a magnet placed near the Hall effect sensor which generates a potential difference through which a variation of the electrical signal from 0.5 to 3.5 VDC is obtained, proportional to the applied pressure. Polyaryllamide plastic casing coupled by ultrasonic welding which makes the coupling of the product components homogeneous and long-lasting. CE1 EN61000-4-2 approved EN61000-4-3 EN61000-4-4 compliant with European Directive 2002 95 EC (RoHS) Mount on stoves: FIREPLACES MONTEGRAPPA ref. 1042200100 mod. Aktiv 22 - Aktiv 27 - Aktiv 32 - Inside W7 - Inside W9 - Inside W12 - Inside W15 - Inside W20 - LW7 - LW9 - LW12 - LW15 - LW20 - Pellet Plus 14000 - Pellet Plus 15000 - Pellet Plus 15000 Power - Pellet Plus 15000 Power 25 |
LR14707006
Data sheet
Specific References
PRESSURE TRANSDUCER 0-4Bar CONNECTOR 1/4"
