    PRESSURE SWITCH CALIBRATION 0.5B DOWN 1/4
    PRESSURE SWITCH CALIBRATION 0.5B DOWN 1/4
    PRESSURE SWITCH CALIBRATION 0.5B DOWN 1/4

    PRESSURE SWITCH CALIBRATION 0.5B DOWN 1/4

    €13.00
    Tax Included
    Return policy:14
    Quantity :
    account_circleShare
    PRESSURE SWITCH CALIBRATION 0.5B DOWN 1/4

    PRESSURE SWITCH CALIBRATION 0.5B DOWN 1/4

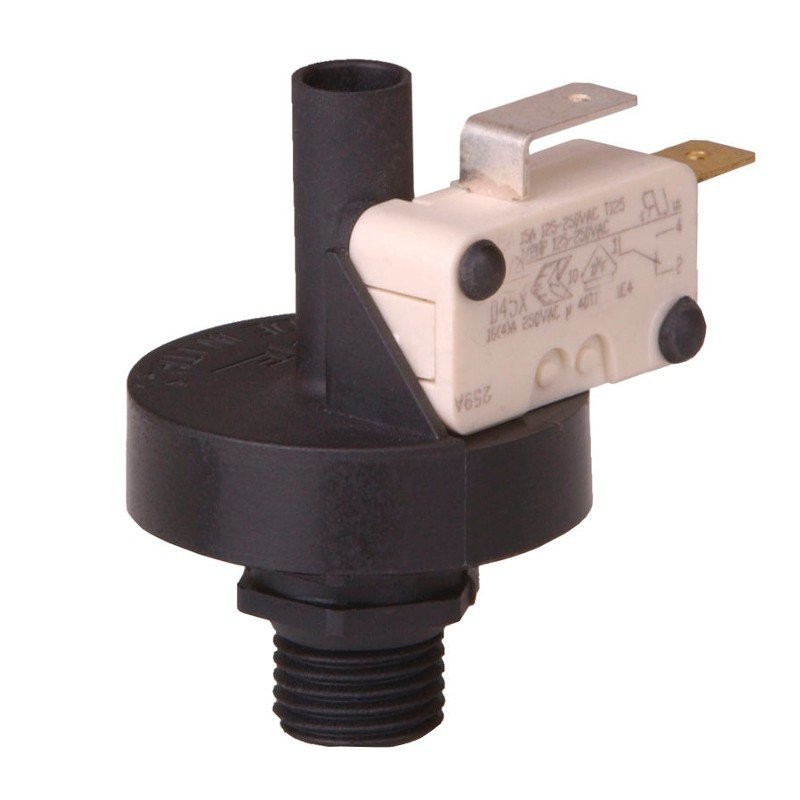

    DescriptionWater pressure switch 0.5 bar

    Connection: 1/4"G with O-ring

    Intervention pressure: 0.5 bar downwards

    Maximum fluid temperature: 150°C

    Max contact current: 16A 250V

    Terminals:  Fast-on 6.3 x 0.8
    SKU14707001
    CharacteristicsWater pressure sensor (pressure switch) 0
    5 bar with downhill detection
    for security applications
    opens the contact when the pressure drops below the preset threshold
    It is normally used for heating systems such as hydro pellet stoves and boilers.
    Constructed from robust plastic material (Polyarylamide) ultrasonically welded to ensure a homogeneous and long-lasting coupling of the parts that withstand high stresses and thermal conditions.
    The membrane sensing element
    through its dilation
    activates the microswitch and determines the opening or closing condition of the contacts whose maximum supported current is 16 Amperes at 250 Volts.
    Suitable for use with gaseous or liquid fluids
    with temperatures up to 150 °C.
    Newgardenstore
    LR14707001
