USB BOOTLOADER INTERFACE COP PH095_B01
€194.00
Tax Included
Return policy:14

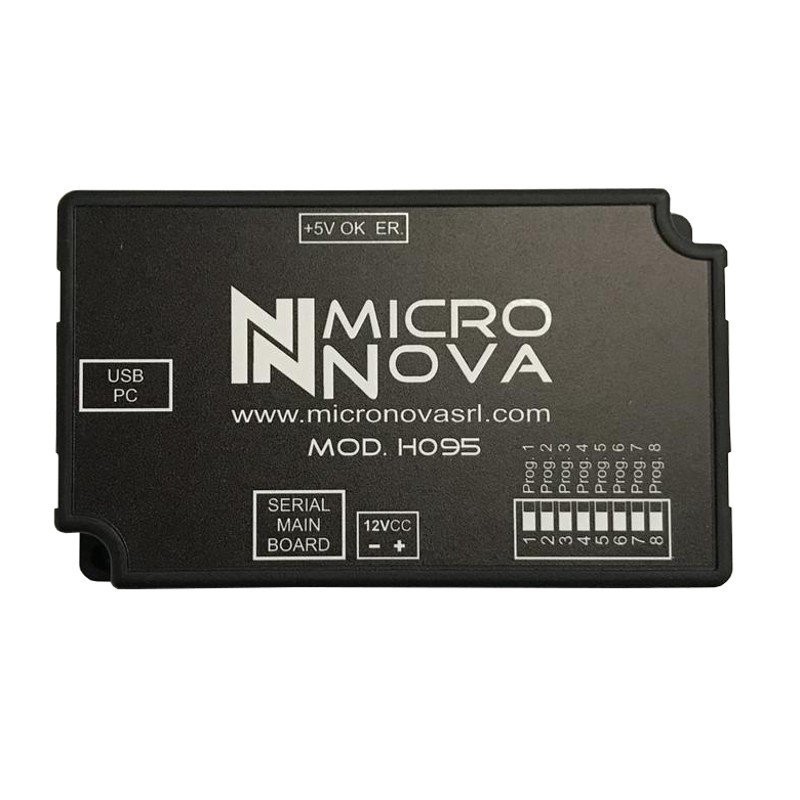

| Description | Portable device - Bootloader - for loading firmware onto Micronova boards. Dimensions: 45 x 144 x 22 (mm) Capacity: up to 8 programs Connection: USB to the computer and serial to the board. Compatibility: all Micronova electronic boards |
|---|---|
| SKU | 14710099 |
| Characteristics | The BootLoader portable device allows you to load and consequently Updating the firmware on MICRONOVA boards quickly and easily. The BootLoader is able to indefinitely store up to 8 different firmwares designed to be permanently installed on the electronic boards. Equipped with a USB interface for connection to a personal computer through which firmware can be transferred using a dedicated program. Bootloader content management software allows you to view the files present on the device to load the firmware to be used to update the cards into it electronic and delete files that are no longer needed. The management software (downloadable by clicking here) presents the user with a single window containing everything needed to fully manage the device. USB drivers are loaded during software installation. To upload the firmware to the board, simply select the corresponding micro-switch. For more information on how it works, download the manual by clicking here. ARCE ref. 1611908869 NORDICA EXTRAFLAME Ref. 002272568 - 2272568 |
LR14710099
Data sheet
Specific References
USB BOOTLOADER INTERFACE COP PH095_B01
