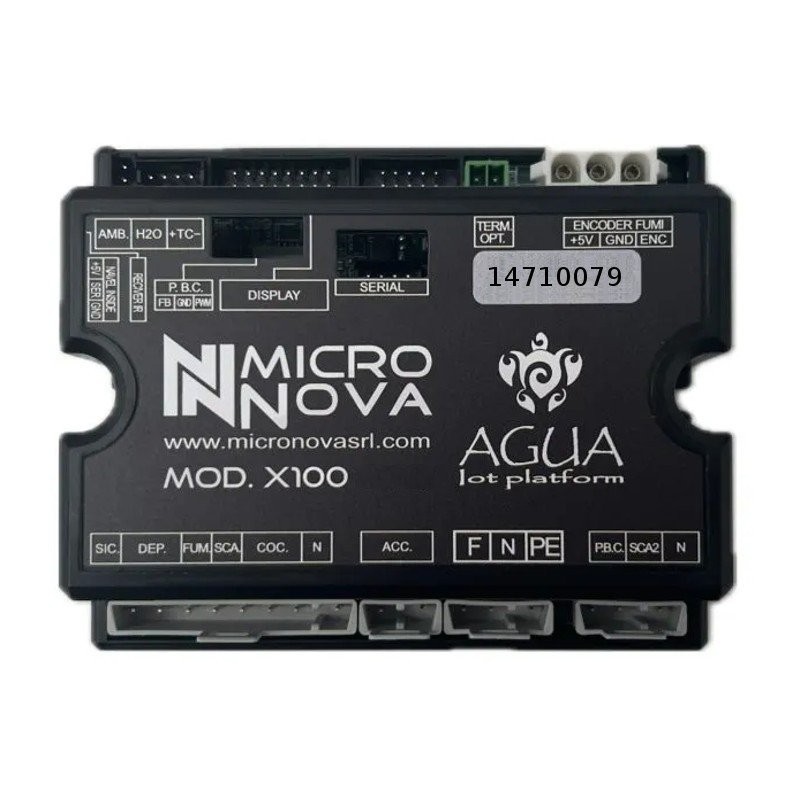

MICRONOVA X100_B BOARD
€209.00
Tax Included
Return policy:14
| Description | MICRONOVA X100 control board - 2-point card fixing - Flue gas probe up to 600°C - Ambient probe - encoder ready - RS232 connector for PC connection |
|---|---|
| SKU | 14710079 |
| Characteristics | SUPPLIED UNSCHEDULED The MICRONOVA PX100_B01 - X100_1B thermoregulator control board is designed for use in pellet stoves, managing all their functions thanks to the inputs and outputs provided. The reliable operating software allows you to manage all the devices connected to the card with maximum flexibility and simplicity It is therefore suitable for installation as a replacement for other thermostats on almost all stoves on the market. It also has a series of advanced functions reserved for the installer who can enter the operating parameters via the keyboard. display or via computer with connection via RS232 SERAMI interface and with the SeramiNet software. Using the keyboard console, you can set operating parameters and access two types of levels using a security key, as well as intervene on the operating states shown on the display. user menu allows you to change parameters such as switching on and off fan regulation working temperature regulation pellet loading cleaning the brazier final cleaning and alarm reset. installer menu to act on advanced parameters such as thermal calibration pellet loading activation and deactivation of inputs and outputs resetting counter memories, etc. view all operating status information room temperature menu levels types of alarms. Mount on stoves SMALL SQUARE PELLET STOVES ITALY |
LR14710079
Data sheet
