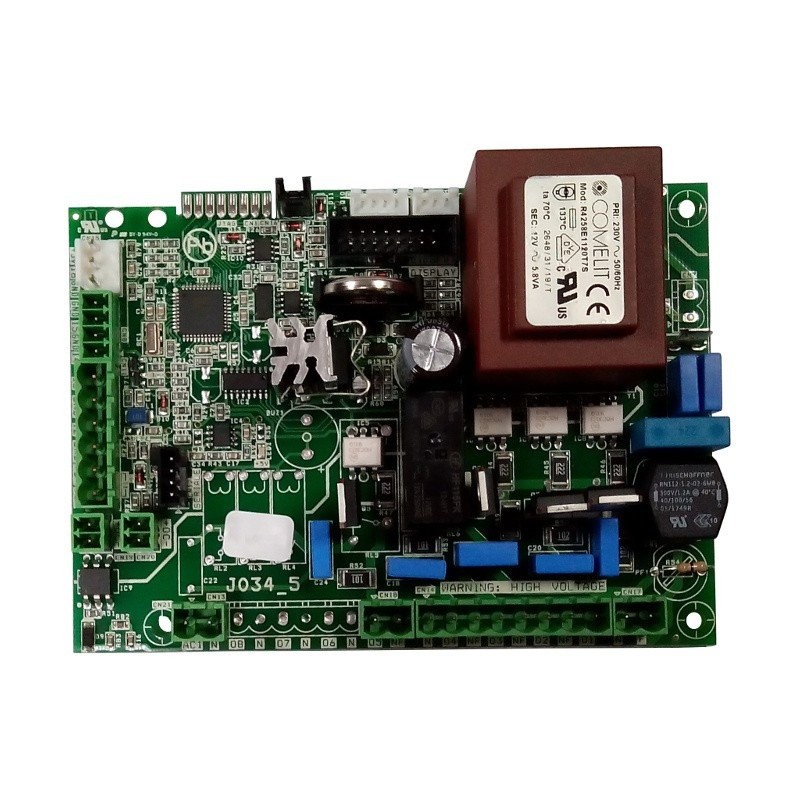

MICRONOVA PJ034_A05 CARD
€197.00
Tax Included
Return policy:14
| Description | MICRONOVA J034_5 control board for pellet stoves - 4-point card fixing - 5.08 pitch removable connectors - Flue gas probe up to 600°C - Ambient probe - encoder ready - RS232 connector for PC connection |
|---|---|
| SKU | 14710049 |
| Characteristics | SUPPLIED UNSCHEDULED The MICRONOVA J034_5 thermoregulator control board is designed for use in pellet stoves, managing all their functions thanks to the inputs and outputs provided. The reliable operating software allows you to manage all the devices connected to the board with maximum flexibility and simplicity. It also has a series of advanced functions reserved for the installer who can enter the operating parameters via computer with connection via RS232 SERAMI interface and with the SeramiNet software. user menu allows you to change parameters such as switching on and off fan regulation chronothermostat and clock settings working temperature regulation pellet loading cleaning the brazier final cleaning and alarm reset. installer menu to act on advanced parameters such as thermal calibration pellet loading activation and deactivation of inputs and outputs resetting counter memories flue gas probe calibration etc.. view all operating status information clock room temperature menu levels weekly programming types of alarms Mount on stoves NORDICA EXTRAFLAME ref. 002272575 - 2272575 mod. Clementina - Comfort hydro - Comfort maxi - Confort mini - Comfort plus - Divina - Duchessa - Duchessa hydro - Ecologica - Ecologica hydro - Elisir - Elisir hydro - Emma - Emma plus - Esmeralda - Falò - Graziosa - Graziosa olus - Irina - Isabella - Iside hydro - Karolina - Melinda hydro - Melinda steel air - Preziosa 2010 - Rosy - Teodora - Tosca plus 2011 - Viviana plus 2012 (No Firmware) |
LR14710049
