    DISPLAY MICRONOVA PM046_A08

    DISPLAY MICRONOVA PM046_A08

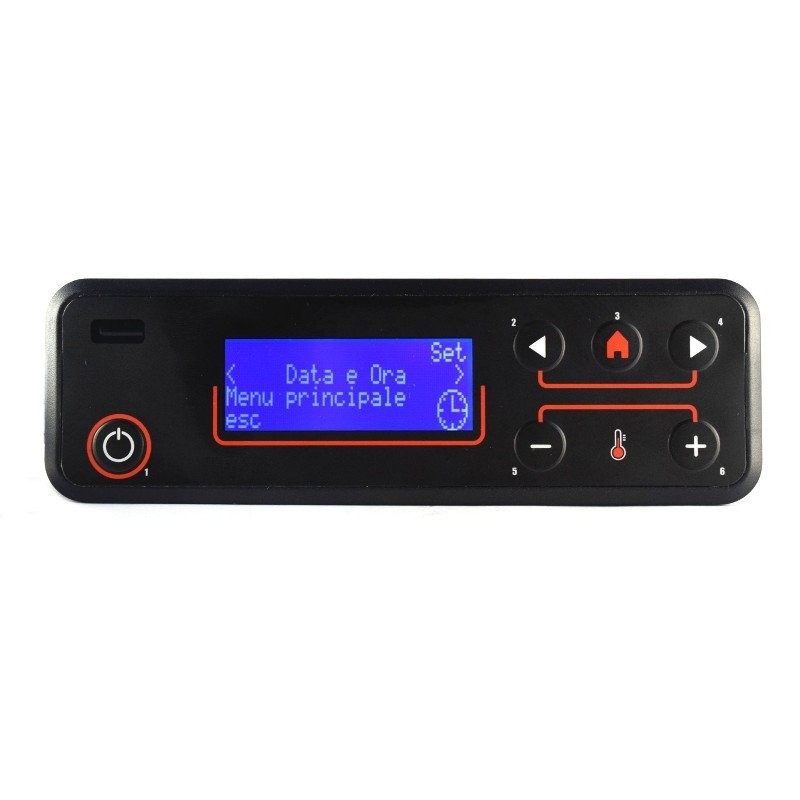

    DescriptionMicronova PM046 LCD display keyboard

    Container: horizontal built-in

    Buttons: 6 push-button

    Interface: Graphic LCD

    Dimensions: 165x53x20 mm
    SKU14710047
    CharacteristicsThe keyboard console
    The MICRONOVA PM046 LCD display must be connected to the control boards via a flat cable code 14710013 - 14710044
    It allows you to program the operating parameters via the 6 keys and display the functions of the thermoregulating electronic board via LCD.
    Via the keyboard
    display you can quickly set the parameters of:
    turning on and off
    working power regulation
    working temperature regulation
    pellet load correction
    room temperature programming
    exit authorizations
    functional check-up, etc.
    The display also shows the operating parameters
    programming set or changed by the user
    installer and any alarm codes.
    Alternative codes - PM046_A02 - M046 - PM046_A08
    Mount on stoves
    CADEL ref. 41451303300 mod. Aquos 15 - Aquos 22 - Aquos 22
    S - Ibis 11 KW - Ibis 15 KW - Ibis 22 KW - Ibis 22 KW H2O
    CADEL ref. 4D1451303300 mod. Aquos3 16 - Bistrot3 - Elise3 - Evo3 7KW - Evo3 8
    5KW - Kriss 7KW - Shell3 - Wall3 plus
    FREEPOINT ref. 4D1451303300
    MCZ ref. 41451200600 - 41451701500
    RED 365 ref. 41451200600 - 41451701500
