    MICRONOVA PE038_B02 BOARD FOR UNGARO

    MICRONOVA PE038_B02 BOARD FOR UNGARO

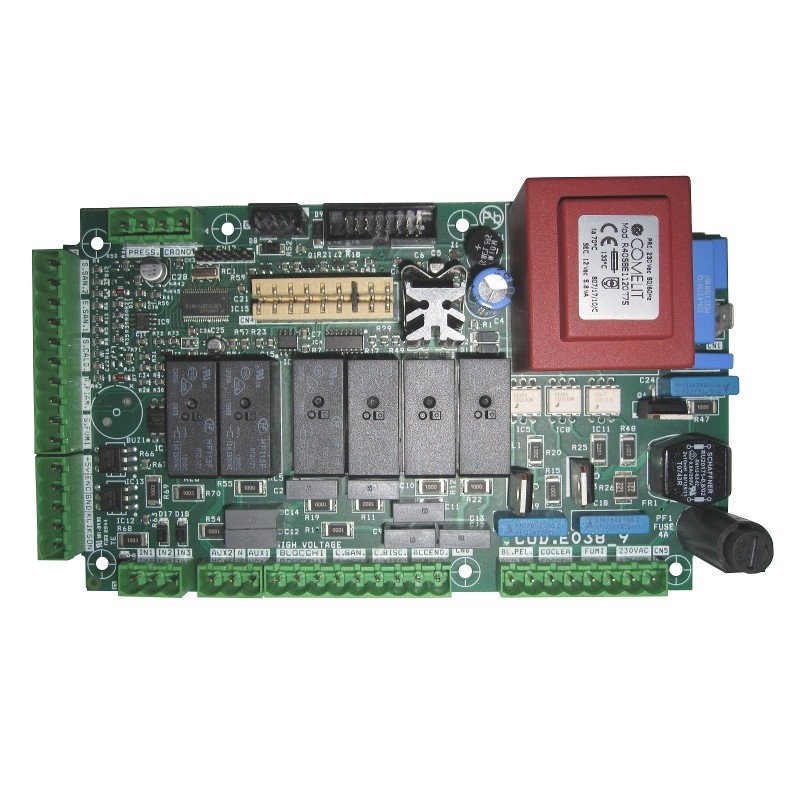

    DescriptionMICRONOVA E038_9 control board for pellet stoves

    - 6-point card fixing

    - 5.08 pitch removable connectors

    - Flue gas probe up to 600°C

    - Ambient probe

    - encoder ready

    - RS232 connector for PC connection
    SKU14710039
    CharacteristicsThe MICRONOVA E038_9B thermoregulator control board is designed for use in pellet stoves, managing all their functions thanks to the inputs and outputs provided.
    The reliable operating software allows you to manage all the devices connected to the board with maximum flexibility and simplicity.
    It also has a number of advanced features.
    user menu allows you to change parameters such as switching on and off
    fan regulation
    chronothermostat and clock settings
    working temperature regulation
    pellet loading
    cleaning the brazier
    final cleaning and alarm reset.
    installer menu to act on advanced parameters such as thermal calibration
    pellet loading
    activation and deactivation of inputs and outputs
    resetting counter memories
    flue gas probe calibration
    etc..
    view all operating status information
    clock
    room temperature
    menu levels
    weekly programming
    types of alarms
    Prepared for the following optional accessories:
    code 14710014 - control panel
    cod. 14710013 - keyboard board connection cable
    code 14708006 - flue gas probe
    code 14708004 - boiler probe
    cod. 14709002 - 3-pin connector, 5.08 mm pitch
    cod. 14709003 - 4-pin connector, 5.08 mm pitch
    cod. 14709007 - 8-pin connector, 5.08 mm pitch
    cod. 14709009 - 10-pin connector, 5.08 mm pitch
    Mount on stoves
    DEVILLE ref. D0026524 + D0026498 mod. Kerdonis (no firmware)
    UNGARO ref. CP00082 Mod. 2 Fire 24 - 2 Fire 34 - 2 Fire Air - Aqa S 15 - Aqa C 15 - Aqa S 18 - Aqa C 18 - Aqa S 24 - Aqa C 24 - BiFuel - CTU 24 - CTU 34 - FIT E 10 - FIT E 14 - FIT E 24 - Kucina 18 - Maia 14 - Maia 18 - Maia 24 - Maia 34 - Yncas 10 - Yncas 14 - Yncas 24
