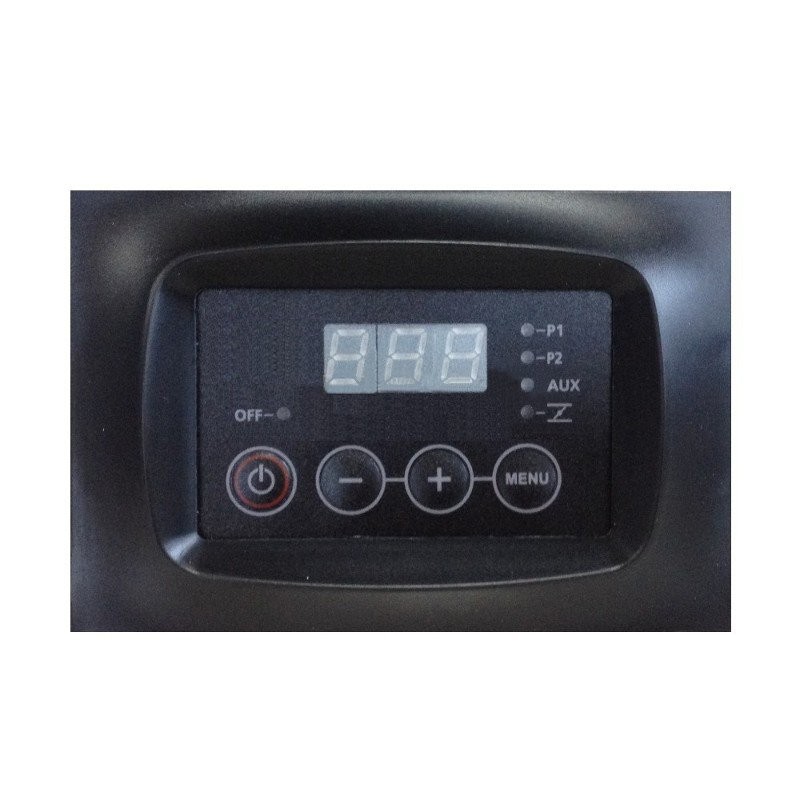

TIEMME TC110 24B-59 STD THERMOREGULATOR
€148.00
Tax Included
Return policy:14
| Description | TIEMME TC 110-24B-59 control unit for IDRO wood-burning inserts - Built-in type - 7-segment LED display - 4 function keys - Temperature sensor: NTC 10K - Outputs: relay output - Power supply voltage: 230 Vac |
|---|---|
| SKU | 14710034 |
| Characteristics | The TIEMME TC110_24B_59 control unit is specific for wood-burning inserts and IDRO thermo-fireplaces composed of a power board and a 7-segment 3-digit LED display board through which it is possible to view the various functions of the stove on off or on standby temperature settable in degrees, possible alarms and operational tests. Using the 4 buttons on the board it is possible to turn the control unit on or off select the type of operation (automatic or manual). Very small in size, suitable for wall mounting in a 3-module box It comes with a plastic external frame. It has two inputs for 10 Kohm NTC probe and flow switch contact. Fits CLAM stoves ref. 05021510 Mod. Calorvision Idro - Termofavilla T 75 PRO - Termofavilla T 85 PRO - Termofavilla T 75 PRO R DX - Termofavilla T 75 PRO R SX - Termofavilla T 85 PRO R DX - Termofavilla T 85 PRO R SX - Termofavilla T 75 PRO RS DX -Termofavilla T 75 PRO RS SX - Termofavilla T 85 PRO RS DX - Termofavilla T 85 PRO RS SX CLAM ref. 05012010 Mod. Rioverde The electronic control unit can be installed to replace the control panel of the electronic board mod. 005 – 005 B COD. 05020048 + 05020047 on CLAM models - Termofavilla entire series - Termofavilla D. entire series. ATTENTION! Carefully follow the wiring diagram and reset the parameters as shown in the manual which can be downloaded by clicking here. |
LR14710034
Data sheet
