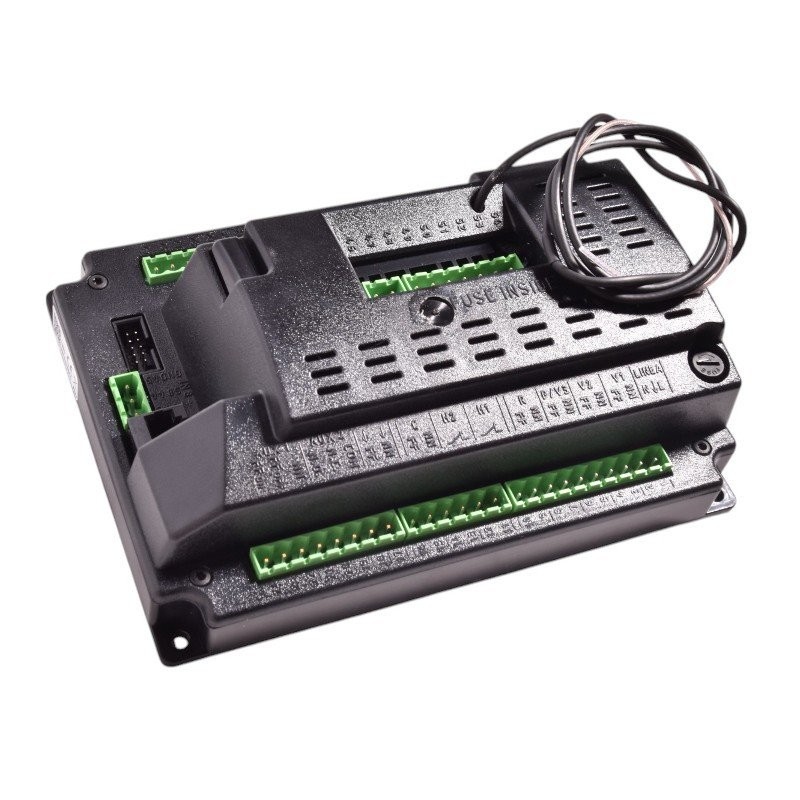

    TIEMME MB250 FULL IDRO 2WAYS CLAM BOARD
    TIEMME MB250 FULL IDRO 2WAYS CLAM BOARD

    TIEMME MB250 FULL IDRO 2WAYS CLAM BOARD

    €395.00
    Tax Included
    Return policy:14
    Quantity :
    account_circleShare
    TIEMME MB250 FULL IDRO 2WAYS CLAM BOARD

    TIEMME MB250 FULL IDRO 2WAYS CLAM BOARD



    DescriptionTIEMME MB250 FULL control board

    Power supply: 230 / 115 Vac 50 / 60 Hz

    Inputs: 10 Low Voltage; 2 High Voltage

    Outputs: No. 05 Relay 5A 250 Vac; N. 03 Triac 1A 250 Vac

    Dimensions: 167x115 mm; DIN 180x130x55 mm

    Interfaces: RS232, RS485 serial
    SKU14710003
    CharacteristicsThe TIEMME MB250 FULL control board is ideal for machines that use biomass.
    Capable of handling solid multi-fuel heating machines
    like stoves
    Burners
    Boilers
    Thermo fireplaces with exchangers
    which use biomass in various types: Pellets
    Corn
    Wood chips
    general chopped fuel and wood.
    Acquires data from temperature probes and transducers
    following consolidated processing algorithms
    check all actuating devices.
    Two types of menus and programming are available via the display keyboard:
    user menu for changing the parameters of:
    turning on and off
    working power regulation
    working temperature regulation
    manual pellet loading
    pellet load correction
    combustion ventilation correction
    room thermostat programming.
    installer menu to act on the calibration of advanced parameters of:
    cochlea
    ventilation
    combustion
    thermostats
    timer
    exit authorizations
    functional check-up
    ignition recovery
    modulation
    pressure sensor configuration
    etc..
    Compatible with all TiEmme electronic keyboards.
    Thanks to RS485 communication
    The MB250 temperature controller can communicate with multiple products at the same time.
    Mount on stoves:
    CLAM ref. 05013050 mod. Suez Hydro Air Power
    CLAM ref. 05013051 mod. Tivoli 8
    20 kW
    CLAM ref. 05013052 mod. Tivoli 11
    26 kW
    CLAM ref. 05013053 mod. Tivoli 14
    34 kW
    CLAM ref. 05012151 mod. MolinaEVO
    CLAM ref. 05011711 mod. Termofavilla TP 30 - Termofavilla TP 18 - Emerald Idro Air Power 20-26 kW
    CLAM ref. 05011714 mod. VittoriaEVO 20 kW
    CLAM ref. 05013056 mod. VittoriaEVO 26 kW
    CLAM ref. 05013057 mod. VittoriaEVO 34 kW - Vittoria S.34 kW
