    TIEMME MB100 BASIC RX CARD NO BOX

    TIEMME MB100 BASIC RX CARD NO BOX

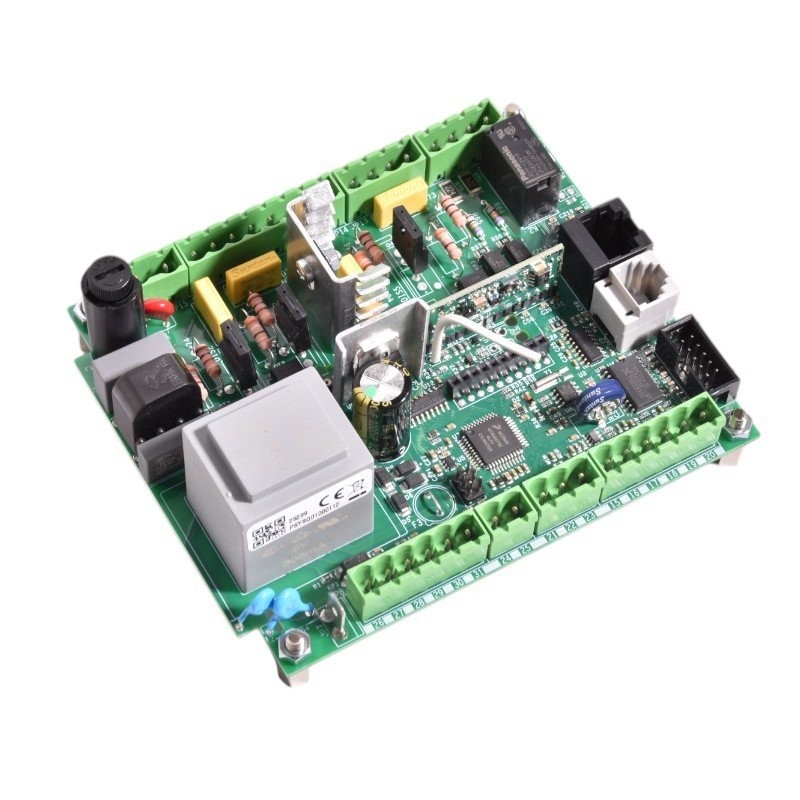

    DescriptionMB100 BASIC pellet stove control board

    - 4-point card fixing

    - Removable connectors

    - Flue gas probe up to 500°C

    - Ambient probe

    - encoder ready

    - RS232 connector for connection to the PC
    SKU14710000
    CharacteristicsThanks to its simple and reliable operating software equipped with advanced functions, the MB100 BASIC - SY100 (universal) thermoregulation board is suitable for installation on almost all ARIA and IDRO pellet stoves on the market.
    It also has a series of advanced functions reserved for the installer who can enter the operating parameters via the keyboard
    display or via computer with connection to the RS232 interface.
    Two types of menus and programming are available via the display keyboard
    user menu for changing the parameters of:
    turning on and off
    working power regulation
    working temperature regulation
    manual pellet loading
    pellet load correction
    combustion ventilation correction
    room thermostat programming.
    Installer menu to act on the calibration of advanced parameters of:
    cochlea
    ventilation
    combustion
    thermostats
    timer
    exit authorizations
    functional check-up
    ignition recovery
    modulation
    etc..
    Supplied with a radio control receiver card for regulating ignition and shutdown and adjusting combustion power.
    Prepared for the following optional accessories:
    code 14708002 - flue gas probe
    cod. 14708003 - room probe
    cod. 14710006 - keyboard board connection cable
    code 14710005 - CP110 keyboard
    cod. 14710007 - TX4 Radio Control
    cod. 14709010 - 2-pole connector, 7.5 mm pitch
    cod. 14709001 - 2-pole connector, 5.08 mm pitch
    cod. 14709002 - 3-pin connector, 5.08 mm pitch
    cod. 14709003 - 4-pin connector, 5.08 mm pitch
    cod. 14709005 - 6-pin connector, 5.08 mm pitch
    cod. 14709007 - 8-pin connector, 5.08 mm pitch
    Mount on stoves
    CLAM Aria Cod. 05011151 Mod. Sirio - Sirio+ - Astra - Astra+ - Venere - Venere+ - Vega - Vega+
    MORETTI DESIGN ref. PSYSQ01000108 (No firmware) ALL VENTILATED AIR STOVES AND AIR STOVES WITH ONE DUCTING SYSTEM (only for LED display 14710005)
