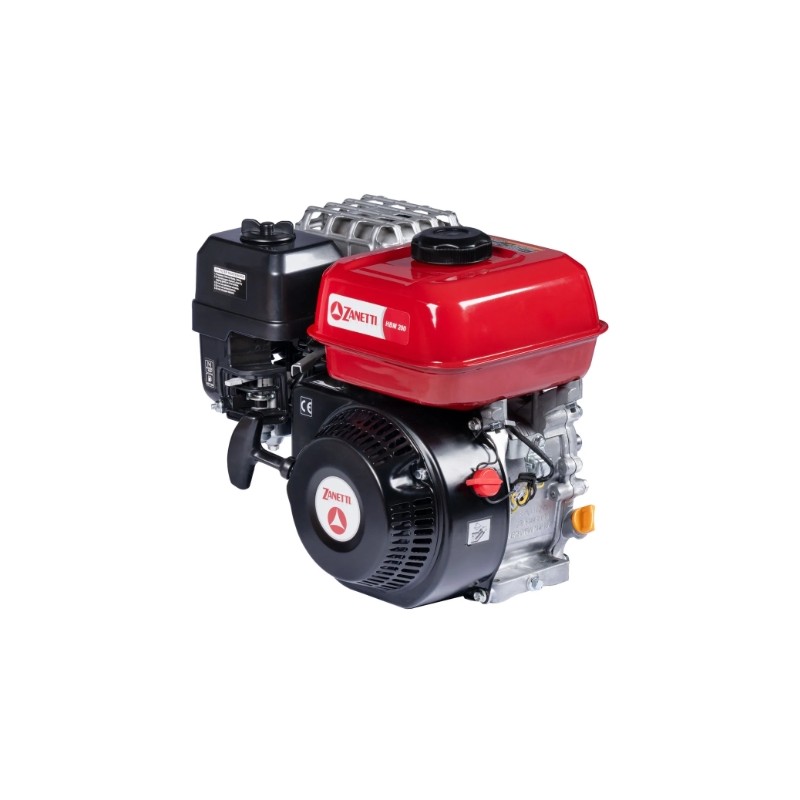

COMPLETE ENGINE

ZANETTI

HBM 200 L2V

HBM200 petrol engines

They are the first of the new "Heavy Duty" range

of Zanetti characterized by efficiency,

resistance, functionality and reliability.

Solid design allows for easy integration

in machine applications

for professional use.

TECHNICAL DATA

Bore x stroke (mm): 68X54

Tree: Horizontal

Shaft Diameter (mm): 19.05

Displacement (cc): 196

Compression ratio: 8:6:1

Maximum power (kW): 4.2

Engine rpm: 3600

Power Source: Petrol

Starter: Self-recoil

Rotation: Counterclockwise from PTO

Air filter: Dry

Tank capacity (L): 4.2

Oil pan capacity (L): 0.6

Dimensions (mm): 420X335X90

Dry weight (Kg): 15.5

CODE:HBM200L2V
