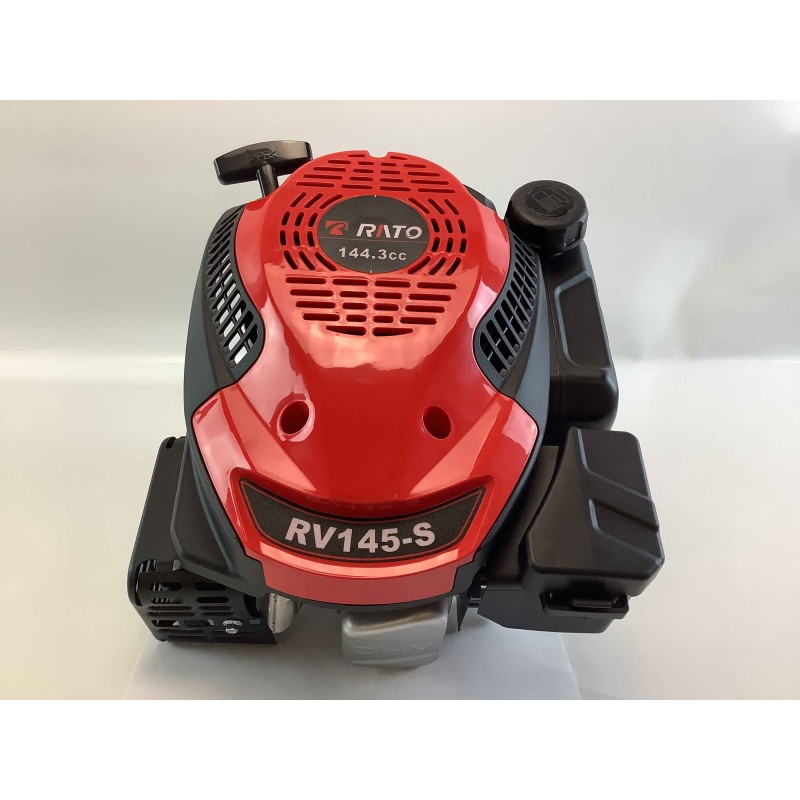

COMPLETE ENGINE RATO
RV145-S

vertical shaft 22x60
light flywheel
for lawnmower lawnmower lawnmower
motor hoe
with blade brake
TECHNICAL DATA
Engine type:Single cylinder 4-stroke OHV
Bore x stroke:65 x 43.5 mm
Displacement:144.3 cc
Compression ratio:7.8 : 1
Net power:2.5 kW / 3060 rpm
Net torque:7.8 N.m / 2500 rpm
PTO Shaft Rotation System:
Counterclockwise(vertical exit)
Start-up: Tear-off
Lubrication system: Forced
Oil capacity:0.4 L
Fuel tank capacity:0.8 L
Dimensions (L x W x H):325 x 275 x 250 mm
Net weight:7.2 kg
Fuel consumption:6.8 g/kW h
