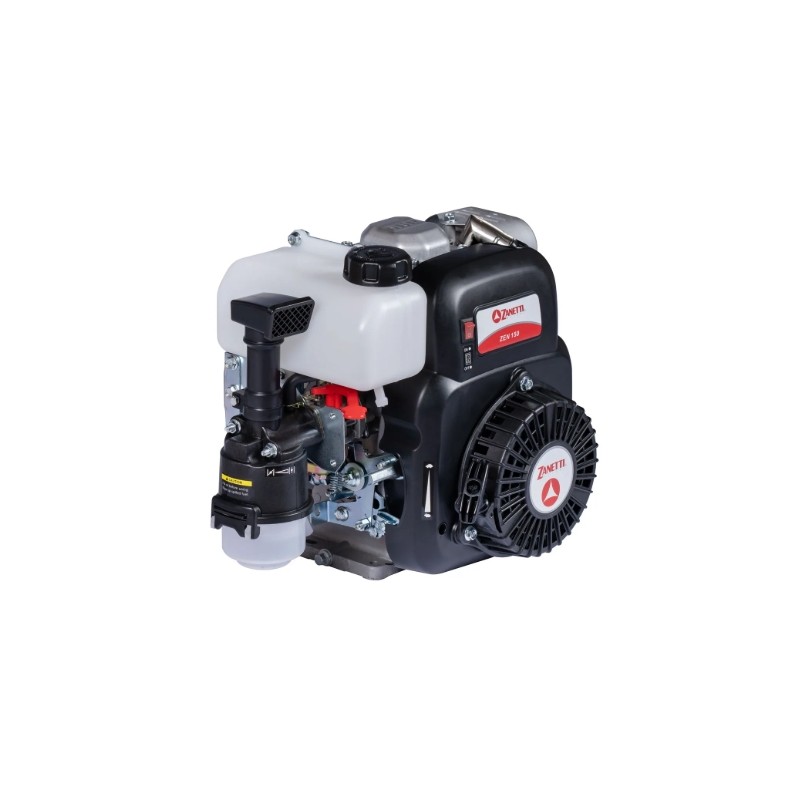

Complete ZANETTI ZEN150C1M ZANETTI ZEN150C1M CONICAL SHAFT Ø 23 AND FLANGE The ZEN PETROL engines boast an unbeatable power-to-weight ratio. Distribution with steel camshaft, rods and tappet sleeves, special surface treatments on the cylinder and appropriate piston ring series, give ZEN engines high reliability, wear resistance and the ability to pass in NO OIL ENGINE TESTS of short duration. Bore x stroke (mm) 65x45 Displacement (cc) 149 Compression ratio 8.2:1 Maximum power kW(Hp) 3.3(4.5) Engine revs (rpm) 3600 Petrol Fuel supply Sound pressure (dBA) 65.5 Consum. Fuel consumption (gr/h) 1000 Starting recoil start facilitated Anti-clockwise rotation from PTO Air filter Oil-bath air filter Tank capacity (lt) 1,2 Oil sump capacity (lt) 0,55 Dimensions mm (WxLxH) 333x241x330 Dry weight (Kg) 10 Shaft type Conical shaft C1M Ø23 NS
