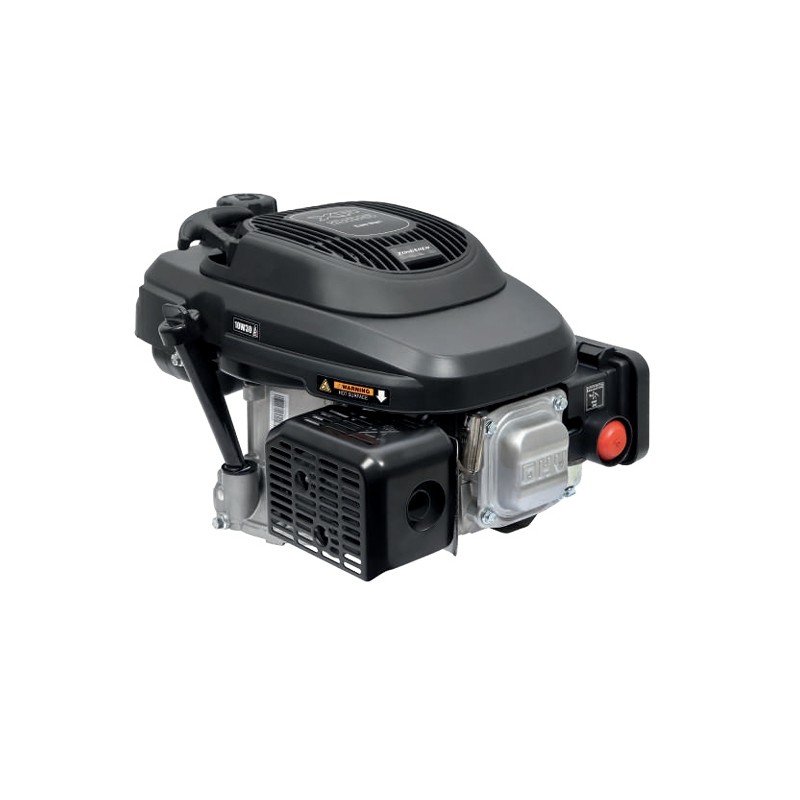

    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60
    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60
    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60
    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60
    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60

    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60

    €188.00
    €200.00
    Save 6%
    Tax Included
    Return policy:14
    Out-of-Stock
    Quantity :
    account_circleShare
    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60

    ZONSEN XP225 224cc complete petrol engine for tiller, vertical shaft 22x60



    COMPLETE ENGINE

    FOR MOTOR HOE

    ZONSEN XP225



    CHARACTERISTICS

    Displacement: 224 cc

    Bore x Stroke: 72 x 55 mm

    Rated power: 4.2 kW / 6 HP / 3,600 rpm

    Maximum torque: 11.5 Nm / 3,000 rpm

    Idle speed: 1,800 ± 200 r/min

    Starting system: Recoil

    Oil (capacity/type): 600 mL / SAE 10W-30

    Tank capacity: 1.4 L

    Fuel consumption: ≤ 374 g/Kw.h

    Engine size: 418 x 345 x 270 mm

    Box size: 435 x 365 x 415 mm

    Weight: 13.2 kg

    Certifications: CE, EC(V), EPA, CARB





    CONFIGURATION

    Shaft: 22x60 mm vertical cylindrical

    Air filter: Dry paper

    Starter: Self-recoil

    Flywheel: Heavy for tiller



    CODE:XP225A-V11A03





    MN









    Zonsen
    6150400399328
    XP225A-V11A03

    Data sheet

    Alimentazione
    Benzina
    Tipo volano
    Pesante
    Tipo di albero
    Verticale
    Lunghezza e diametro albero (mm)
    22 x 60 mm
    Cilindrata (cc)
    224
    Peso a secco (Kg)
    13,2
