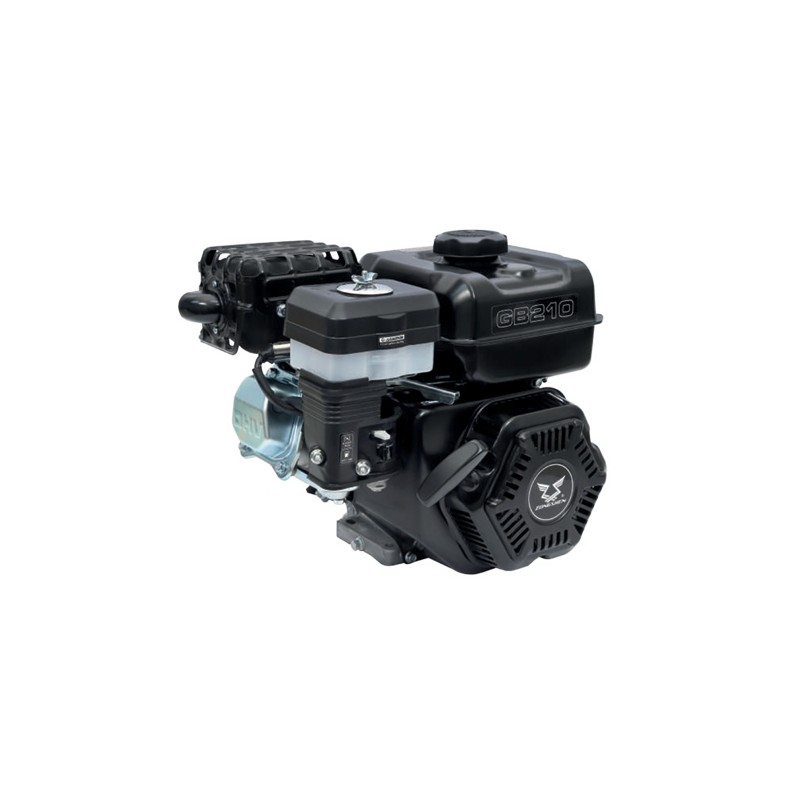

COMPLETE ENGINE

FOR MOTOR HOE

ZONSEN GB210

CHARACTERISTICS

Displacement: 208 cc

Bore x Stroke: 70 x 54 mm

Rated power: 4.3 kW / 5.5 HP / 3,600 rpm

Maximum torque: 11.5 Nm / 2,600 rpm

Idle speed: 1,650 ± 150 r/min

Starting system: Recoil

Oil (capacity/type): 600 mL / SAE 10W-30

Tank capacity: 4.2 L

Fuel consumption: ≤ 374 g/Kw.h

Engine size: 365 x 320 x 344 mm

Box size: 420 x 355 x 390 mm

Weight: 17.6 kg

Certifications: CE, EC(V), EPA, CARB

CONFIGURATION

Shaft: 23 mm horizontal tapered

Air filter: Oil bath

Starter: Self-recoil

CODE:GB210-H6A01
