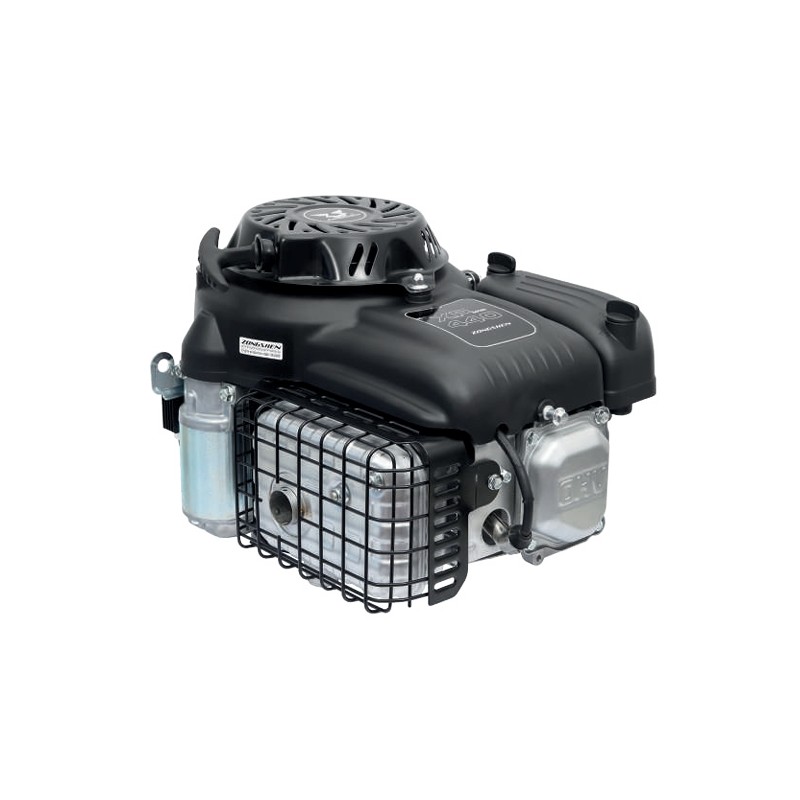

COMPLETE ENGINE

FOR TRACTOR MOWER

ZONSEN XP440

CHARACTERISTICS

Displacement: 439 cc

Bore x Stroke: 90 x 69 mm

Rated power: 9.5 kW / 12.5 HP / 3,600 rpm

Maximum torque: 27.5 Nm / 3,000 rpm

Idle speed: 2,200 ± 200 r/min

Starting system: Recoil / Electric

Oil (capacity/type): 1,400 mL / SAE 10W-30

Tank capacity: /

Fuel consumption: ≤ 370 g/Kw.h

Engine size: 420 x 365 x 362 mm

Box size: 490 x 450 x 415 mm

Weight: 27.8 kg

Certifications: CE, EC(V), EPA, CARB

CONFIGURATION

Shaft: 1" cylindrical vertical

Air filter: Dry double element

Starting: Self-recoil + Electric

Flywheel: Heavy for tractor

CODE:XP440-V9C00
