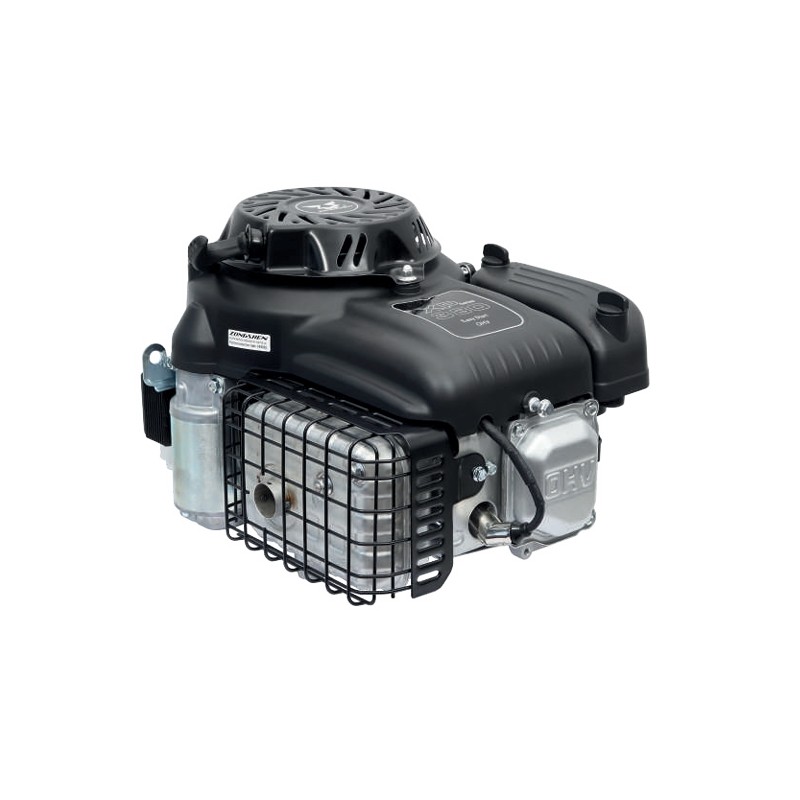

COMPLETE ENGINE

FOR TRACTOR MOWER

ZONSEN XP380

CHARACTERISTICS

Displacement: 382 cc

Bore x Stroke: 84 x 69 mm

Rated power: 8.5 kW / 11.5 HP / 3,600 rpm

Maximum torque: 24.5 Nm / 3,000 rpm

Idle speed: 2,200 ± 200 r/min

Starting system: Recoil / Electric

Oil (capacity/type): 1,400 mL / SAE 10W-30

Tank capacity: /

Fuel consumption: ≤ 374 g/Kw.h

Engine size: 420 x 365 x 362 mm

Box size: 475 x 400 x 440 mm

Weight: 28.4 kg

Certifications: CE, EC(V), EPA, CARB

CONFIGURATION

Shaft: 1" cylindrical vertical

Air filter: Dry double element

Starting: Self-recoil + Electric

Flywheel: Heavy for tractor

SUITABLE FOR TRACTOR MOWERS

CUB CADET MINIRIDER LR1 MS76

CODE:XP380-V9C00
